REMOVAL AND INSTALLATION - 2.4L Engine: Notes

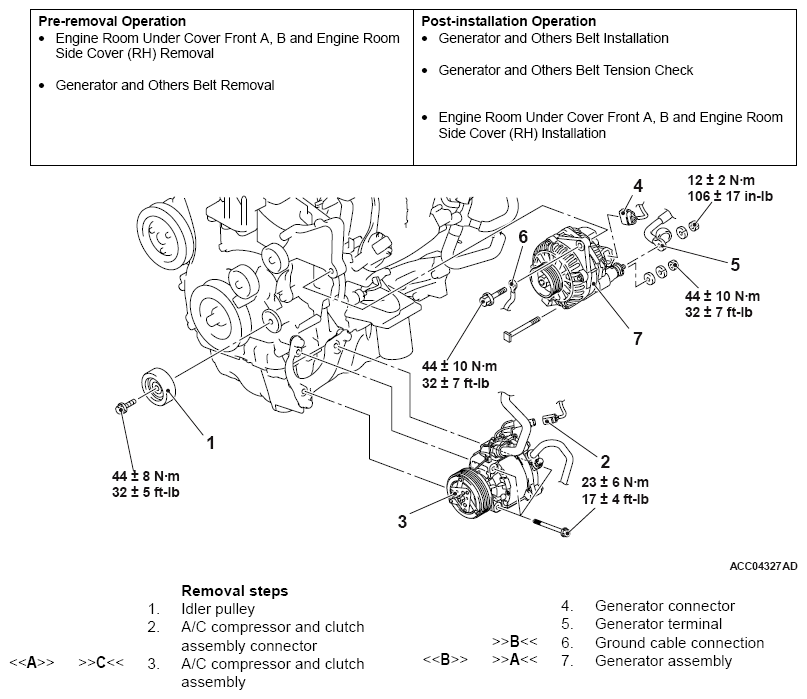

Fig 1: Removing/Installing Generator Assembly With Torque Specification - 2.4L Engine

G09664709

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
