Mitsubishi
>>
2014
>>
Outlander ES
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Inspection Terminal
Inspection Terminal
Name
Symbol
Data link connector
B
Spare connector (for rear display)
C
Spare connector (for switch box)
D
Spare connector (for trailer harness)
A

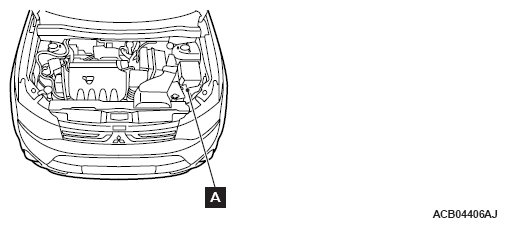

Fig 1: Locating Spare Connectors (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

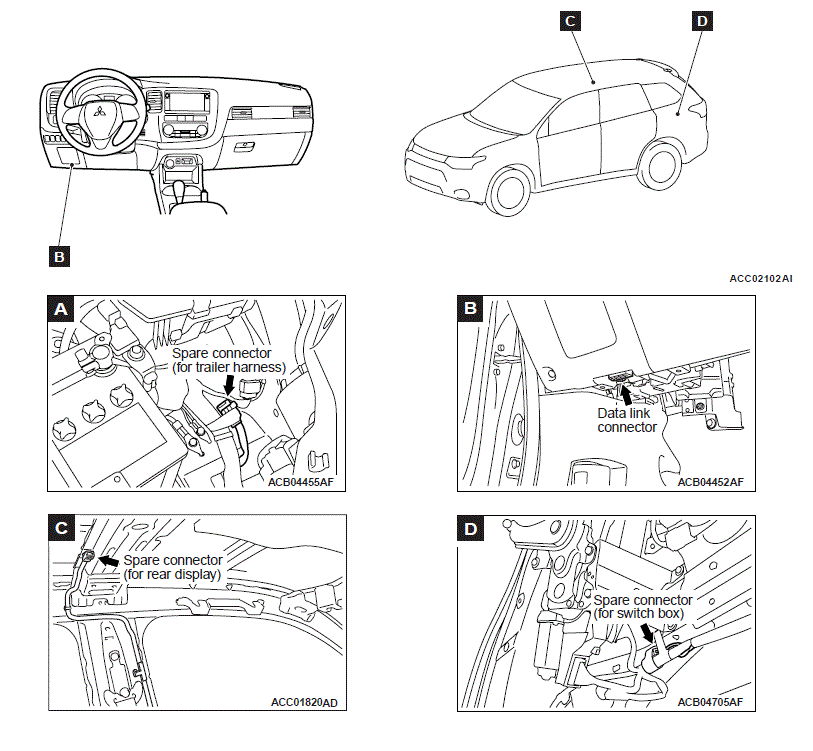

Fig 2: Locating Spare Connectors (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
