How To Use The Inspection Procedures: Notes

The causes of many of the symptoms occurring in electric circuitry are generally the connectors, components, the ECU, and the harnesses between connectors, in that order. These inspection procedures follow this order. They first try to discover a symptom with a connector or a defective component.

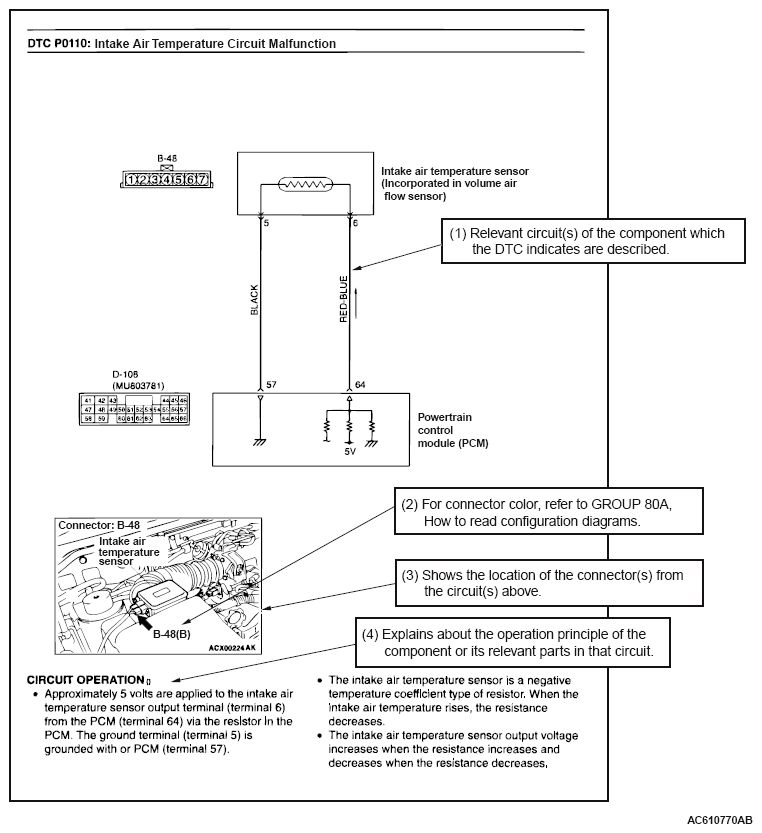

Fig 1: Example Of How To Use Troubleshooting/Inspection Service Points (1 Of 2)
G09663134Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

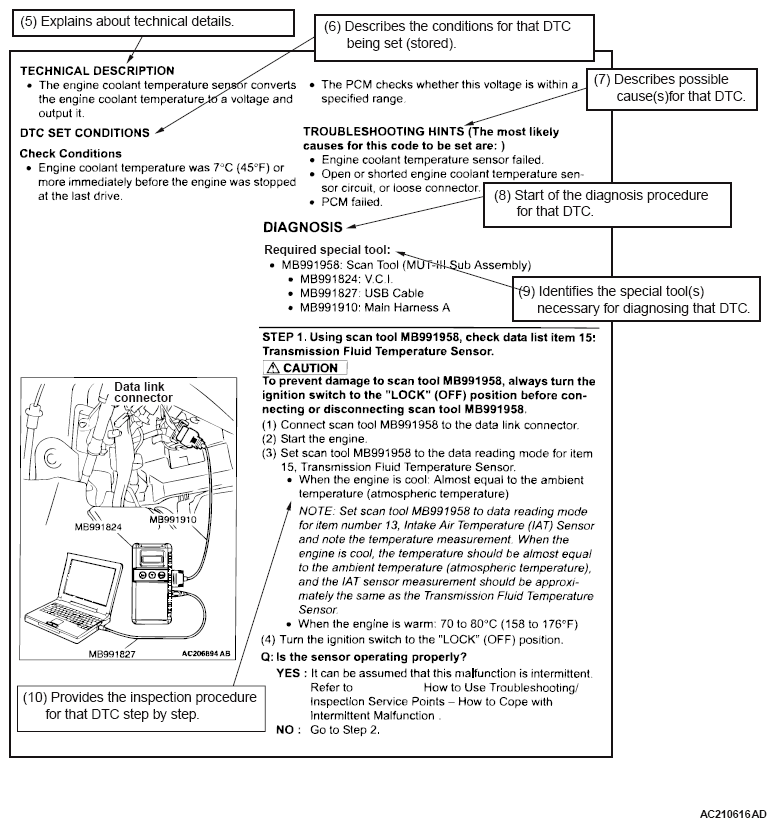

Fig 2: Example Of How To Use Troubleshooting/Inspection Service Points (2 Of 2)
G09663135Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
