Home >> Mitsubishi >> 2014 >> Outlander ES >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Headlining >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: For the removal of the headlining, refer to SERVICE PRECAUTIONS and CURTAIN AIR BAG MODULE .

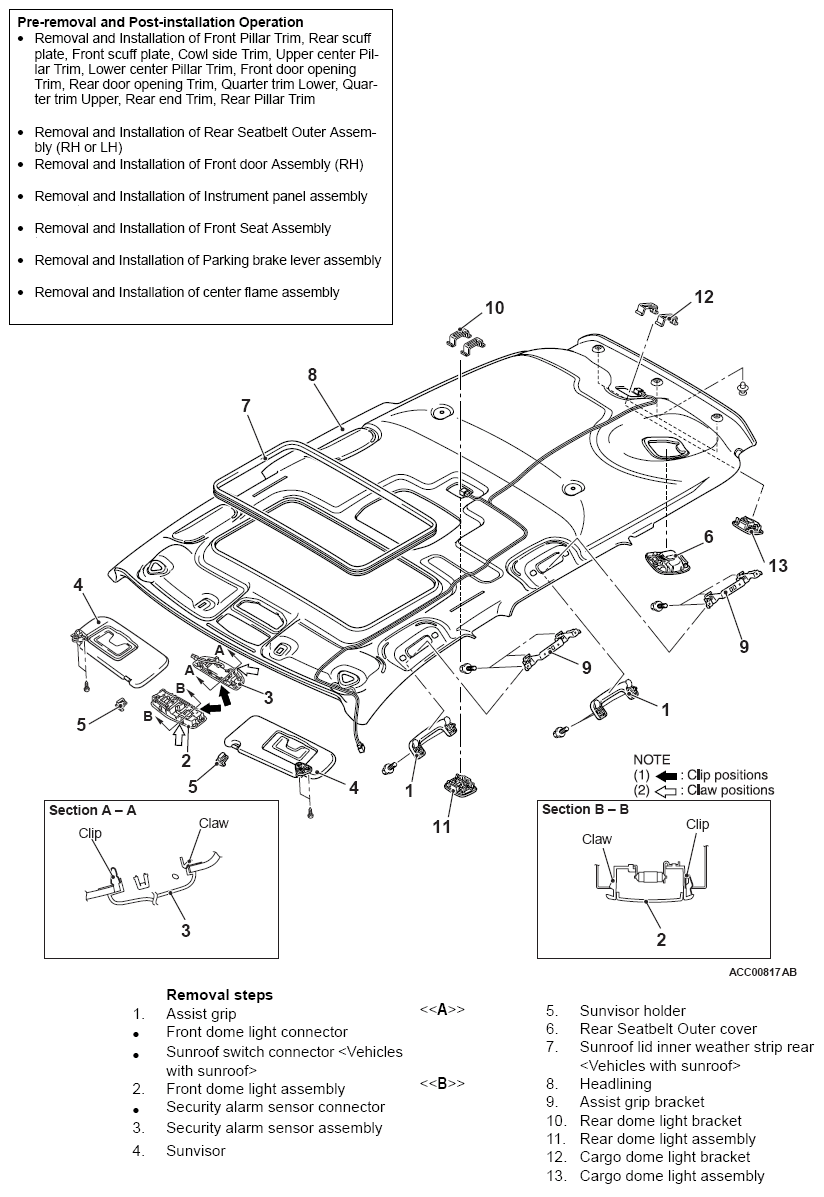

Fig 1: Removing/Installing Headlining
G09666432Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
