Removal And Installation: Notes

The following bolts and screws are used for installing the instrument panel: The bolts and screws are indicated by symbols in the illustrations in sections "REMOVAL AND INSTALLATION" and "DISASSEMBLY AND ASSEMBLY."

Name	Symbol	Dimensions mm (screw diameter x screw length)	Color	Shape
Tapping screw	a	5 x 14	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tapping screw	b	5 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Bolt with washer	c	6 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

For the removal of the front passenger's air bag module, refer to SERVICE PRECAUTIONS , DRIVER'S AIR BAG MODULE AND CLOCK SPRING and PASSENGER'S (FRONT) AIR BAG MODULE before operation.
Do not subject SRS-ECU to any shocks when removing or installing the instrument panel.

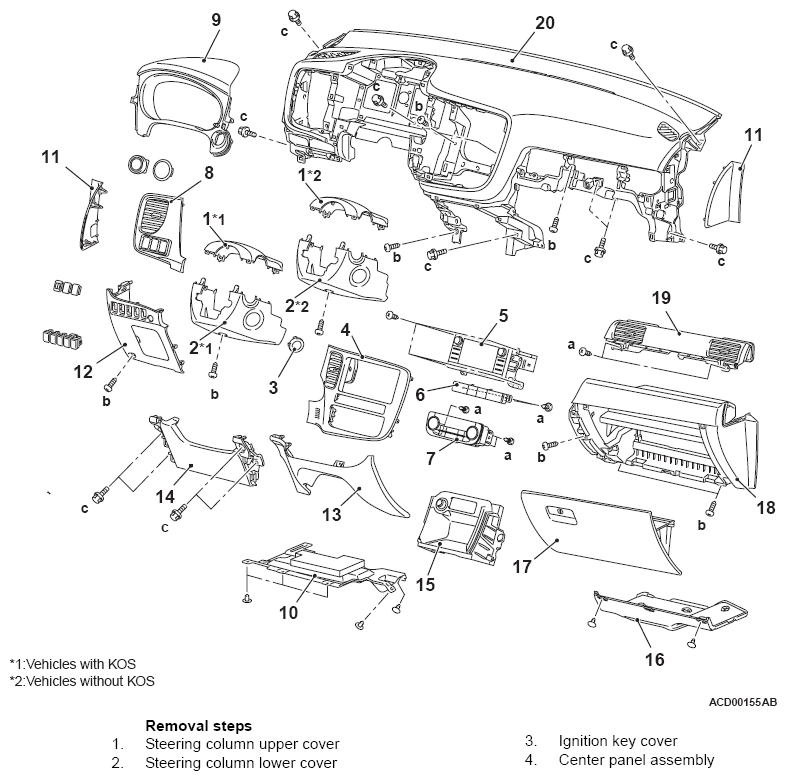

Fig 1: Removing/Installing Instrument Panel Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

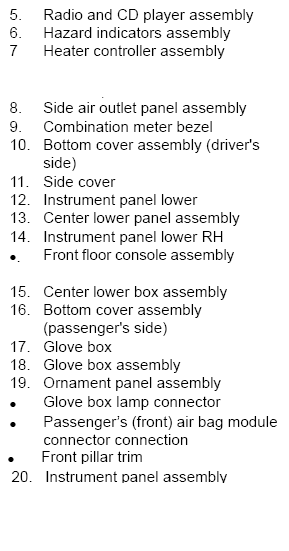

Fig 2: Identifying Additional Callouts For Figure 1

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
