Seat Assembly: Inspection: Notes

Connect the + terminal of the battery to the power seat connector terminal No. 2 and the - terminal to terminal No. 1, and check that the power seat works normally.

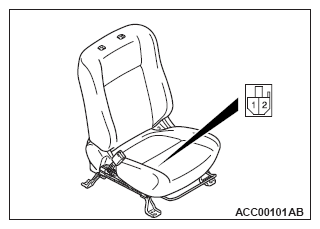

Fig 1: Power Seat Connector End View
G09666441Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
