Home >> Mitsubishi >> 2014 >> RVR ES >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass >> Windshield >> Removal And Installation >> Notes

Removal And Installation: Notes

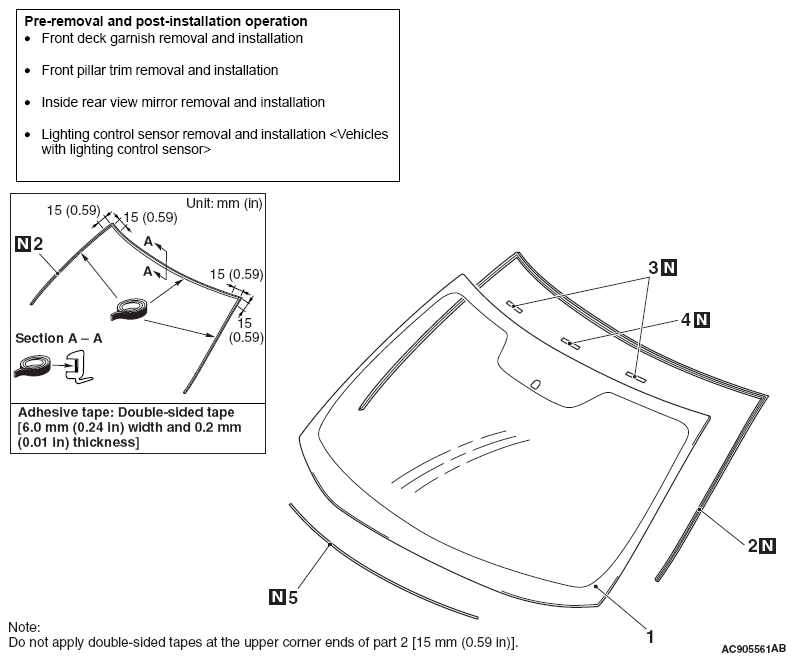

Fig 1: Removing/Installing Windshield Adhesive Tape Applying Area (1 Of 2)
G09670607Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

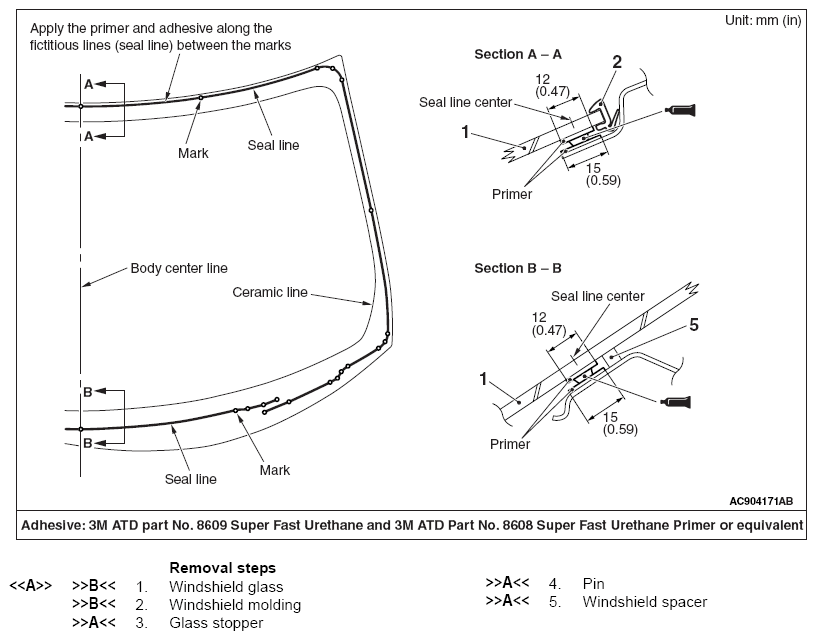

Fig 2: Removing/Installing Windshield Adhesive Tape Applying Area (2 Of 2)
G09670608Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
