Control Unit

Name Symbol
AWD-ECU C
A/C control panel (incorporating ECU) L
ASC-ECU A
Column switch (incorporating column-ECU) D
Combination meter (incorporating CPU) E
Engine control module B
Electric power steering-ECU J
ETACS-ECU I
Front seat assembly (RH) (incorporating occupant classification-ECU) O
Hands free module F
Headlight control unit < Vehicles with discharge type headlight > N
KOS-ECU H
OSS-ECU < Vehicles with KOS > H
Power window main switch (incorporating CPU) P
SRS-ECU K
Sunshade motor assembly (incorporating CPU) M
Transaxle control module < CVT > C
WCM < Vehicles without KOS > H

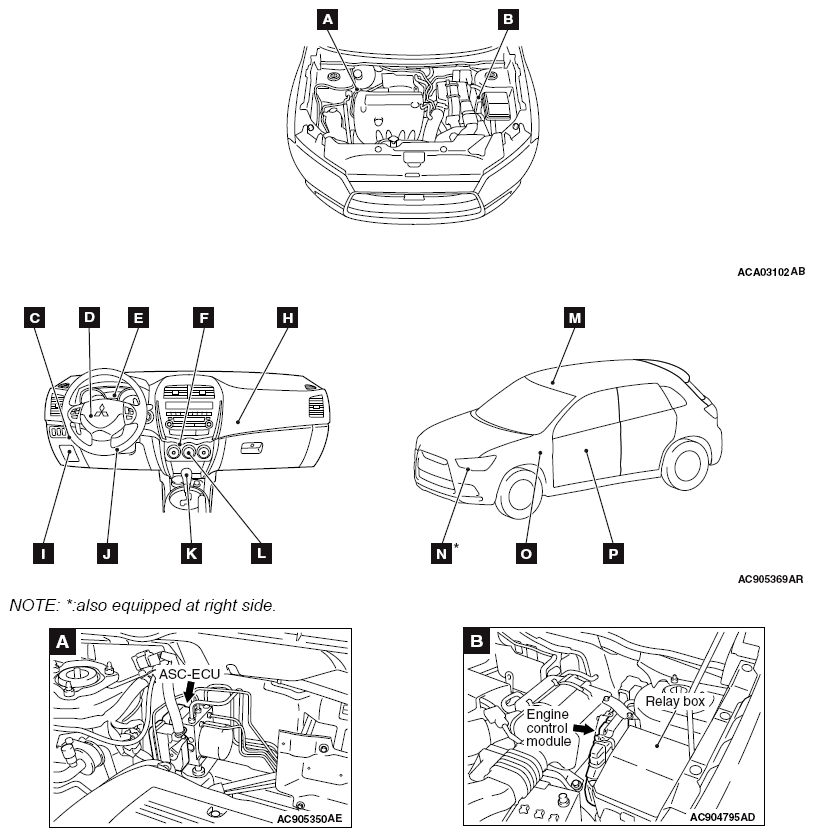

Fig 1: Control Unit Components Location (1 Of 3)
G09621860Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

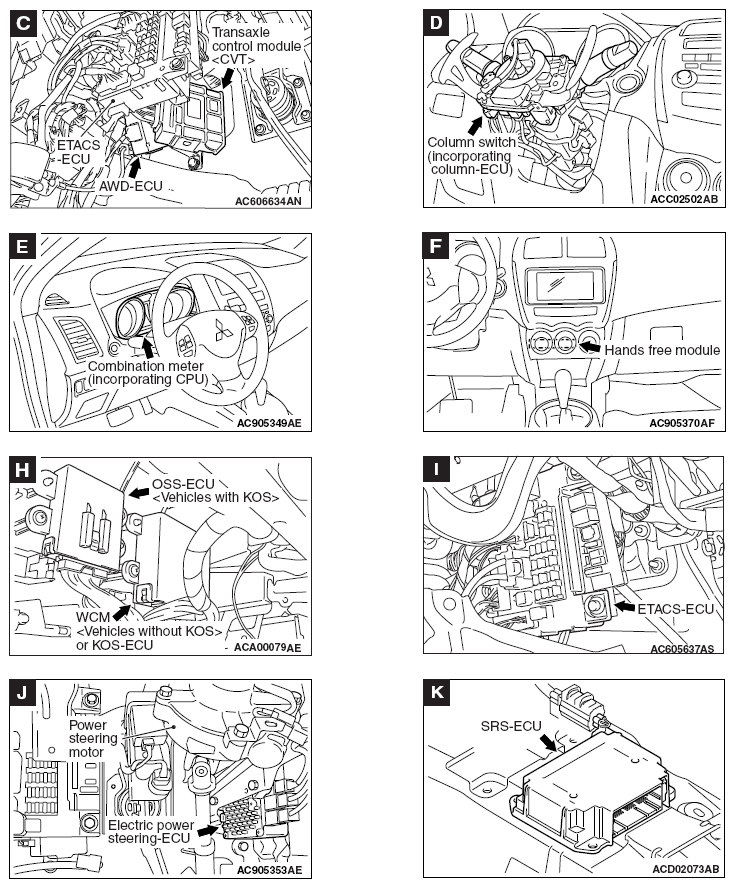

Fig 2: Control Unit Components Location (2 Of 3)
G09621861Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

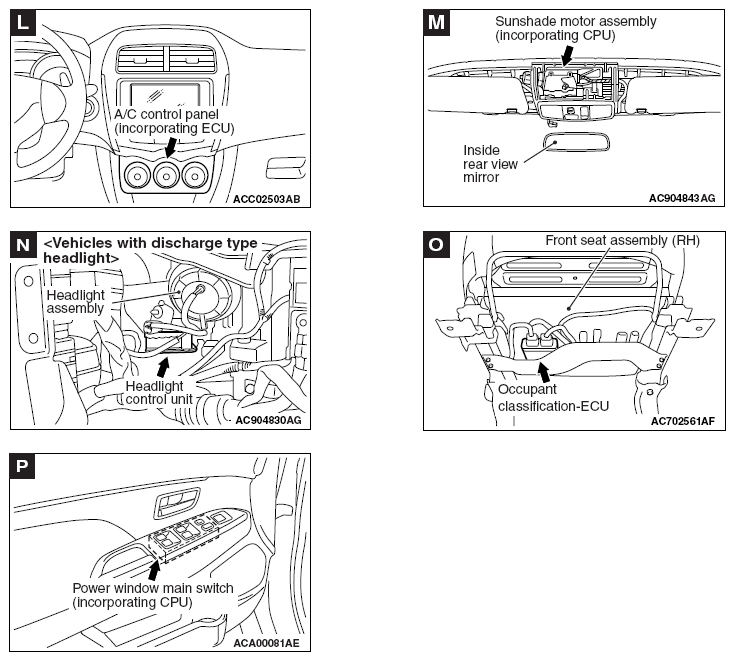

Fig 3: Control Unit Components Location (3 Of 3)
G09621862Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
