Component Locations: Grounding

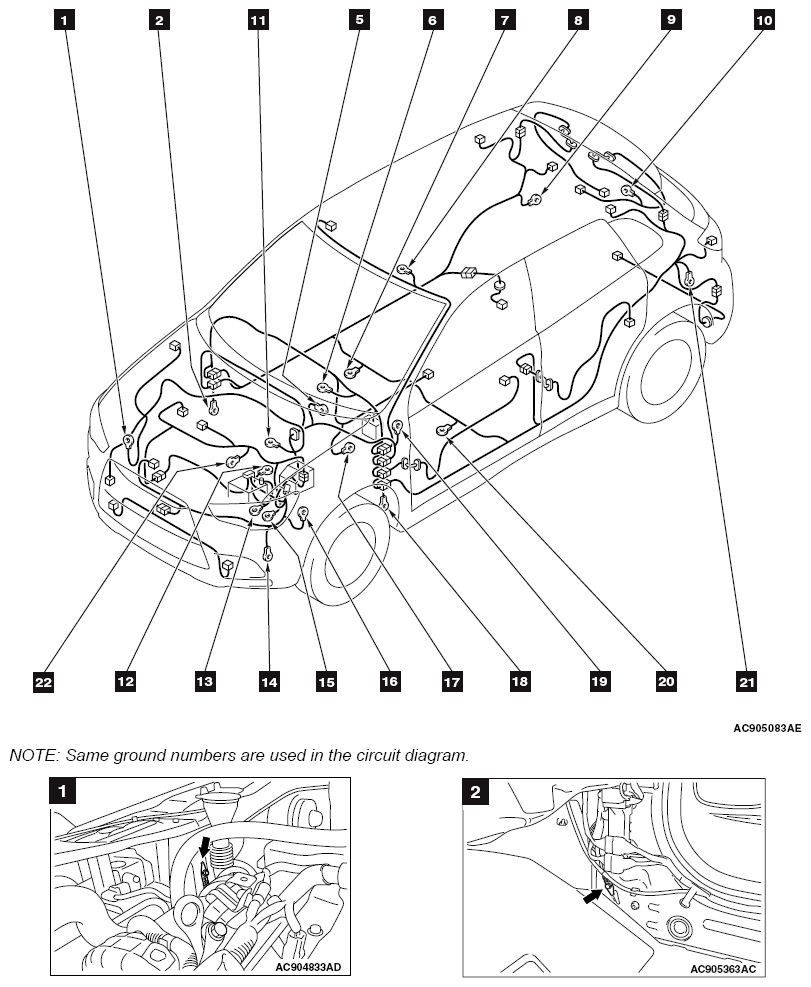

Fig 1: Grounding Components Locations (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

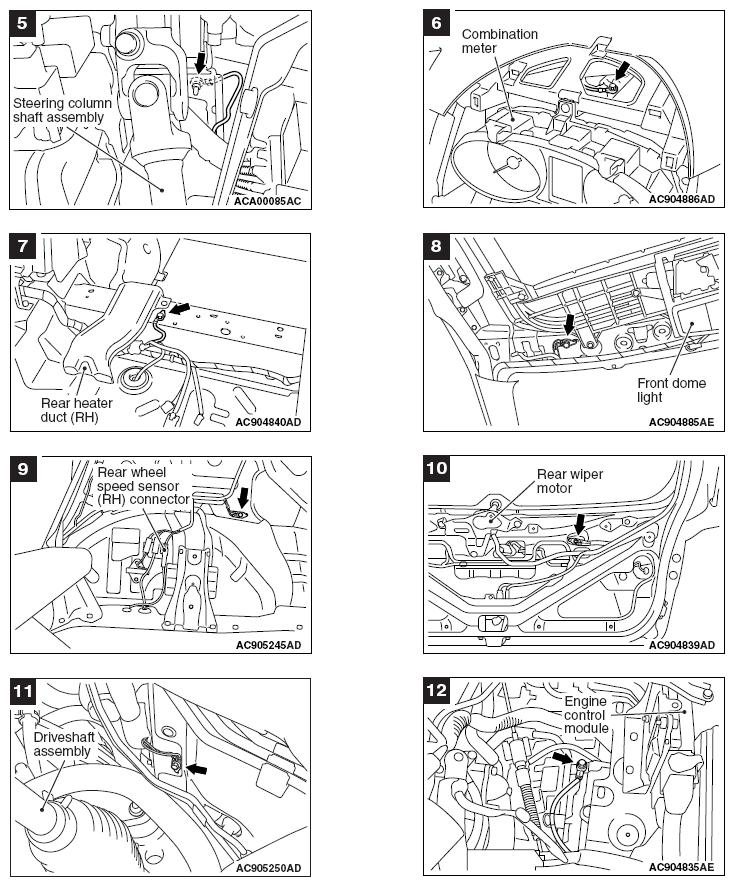

Fig 2: Grounding Components Locations (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

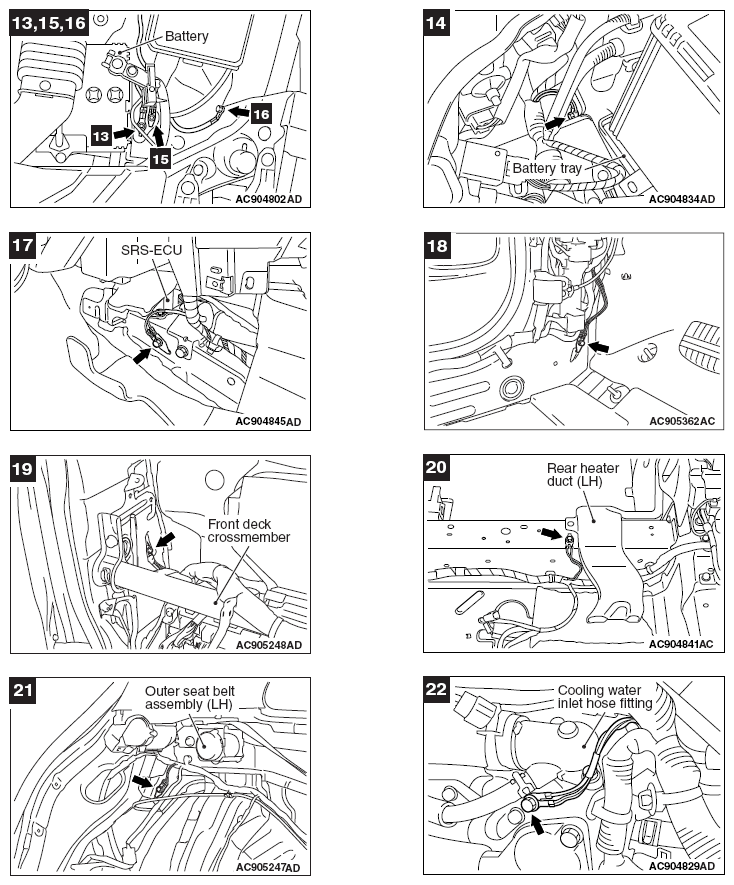

Fig 3: Grounding Components Locations (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
