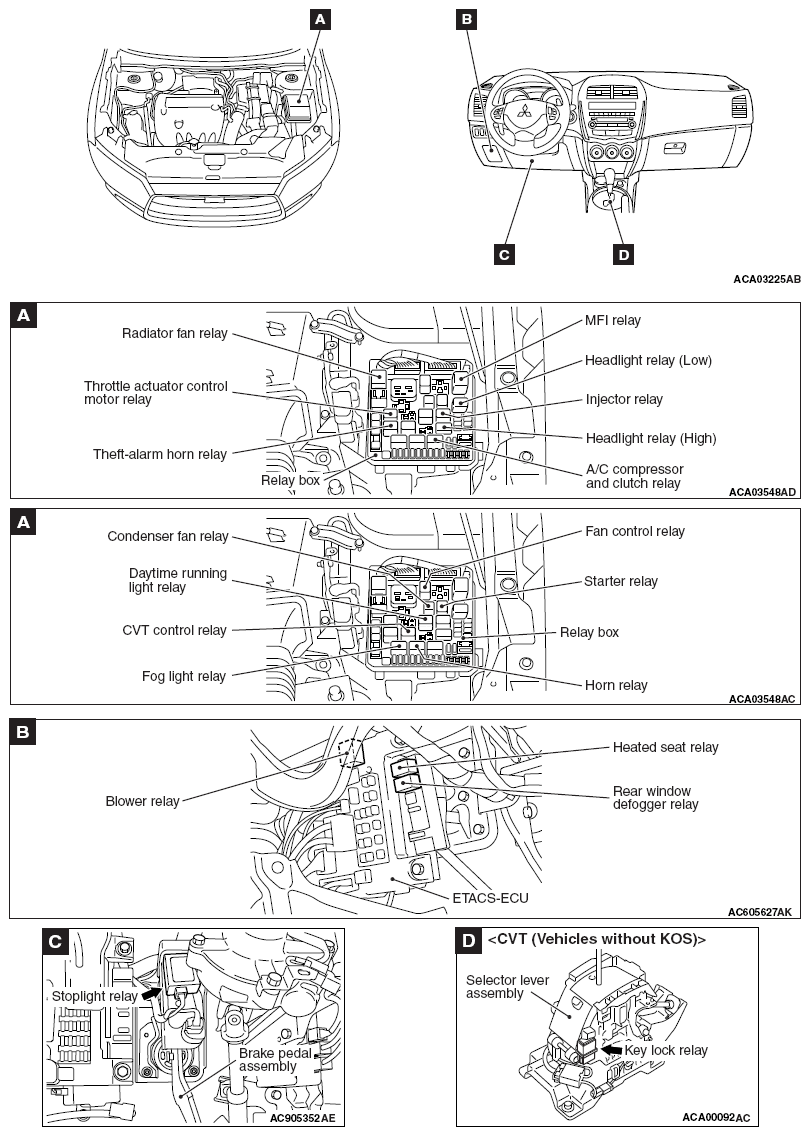

Component Locations: Relay
RELAY IDENTIFICATION
| Name | Symbol |
|---|---|
| A/C compressor and clutch relay | A |
| Blower relay | B |
| Condenser fan relay | A |
| CVT control relay | A |
| Daytime running light relay | A |
| Fan control relay | A |
| Fog light relay | A |
| Headlight relay (High) | A |
| Headlight relay (Low) | A |
| Heated seat relay | B |
| Horn relay | A |
| Injector relay | A |
| Key lock relay < CVT (Vehicles without KOS) > | D |
| MFI relay | A |
| Radiator fan relay | A |
| Rear window defogger relay | B |
| Starter relay | A |
| Stoplight relay | C |
| Theft-alarm horn relay | A |
| Throttle actuator control motor relay | A |
