Removal And Installation: Notes

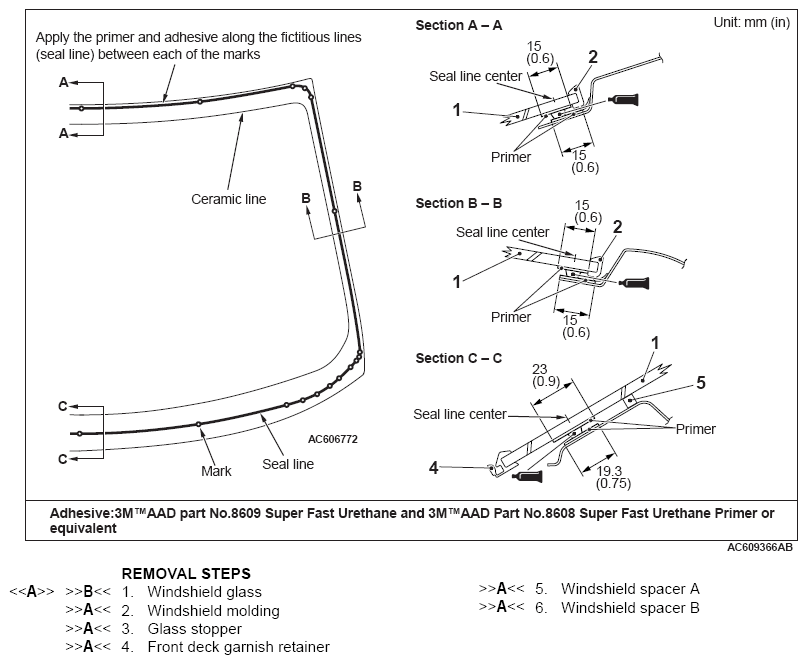

Fig 1: Window Glass Adhesive Tape Applying Area (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

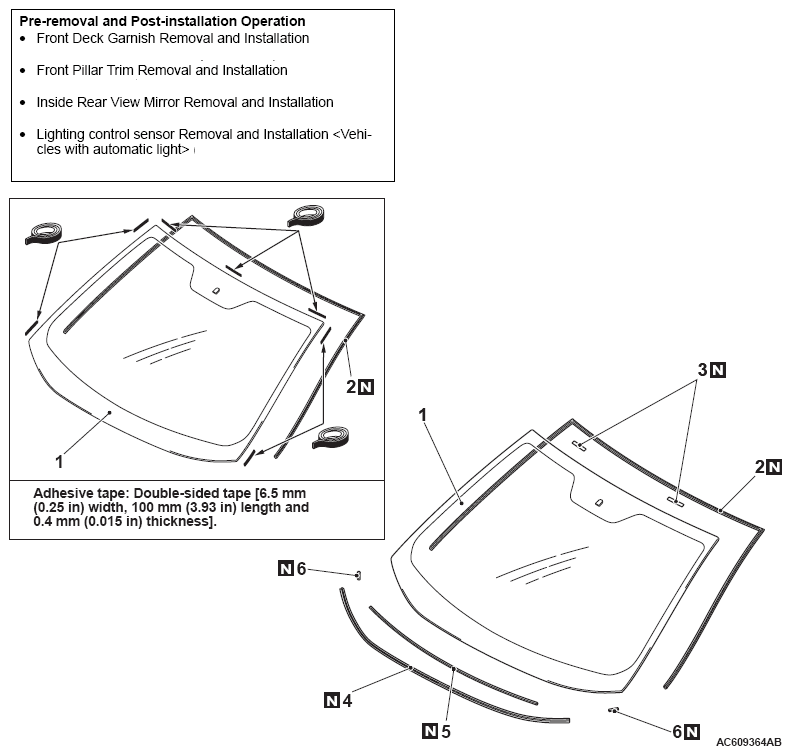

Fig 2: Window Glass Adhesive Tape Applying Area (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990480: Glass Holder
