Disassembly And Assembly: Notes

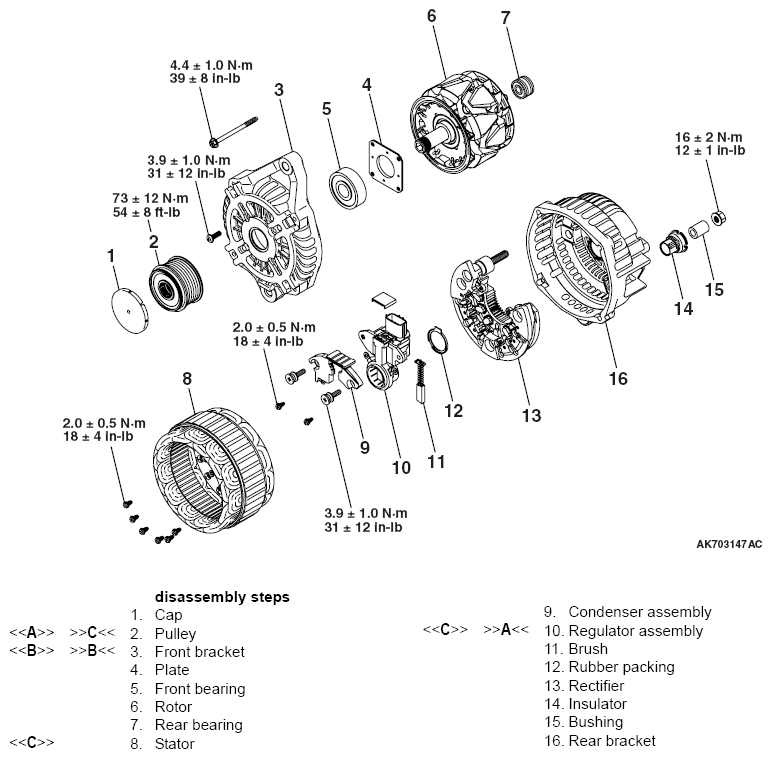

Fig 1: Disassembled View Of Generator Assembly With Torque Specifications
G09640988Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
