Charging System - Lancer Evolution: Inspection: Stator

Check the continuity between coil leads.
If there is no continuity, replace the stator.

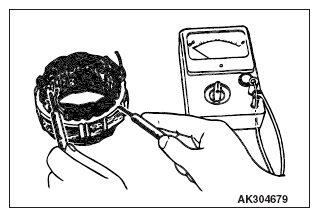

Fig 1: Checking Continuity Between Stator Coil Leads
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the continuity between coil and core.
If there is continuity, replace the stator.

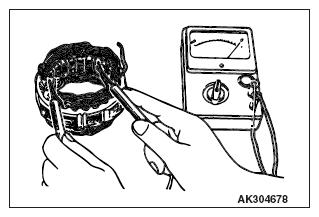

Fig 2: Checking Continuity Between Coil And Core
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
