Wave Pattern Check Using An Oscilloscope
>>
Measurement Method
Measurement Method

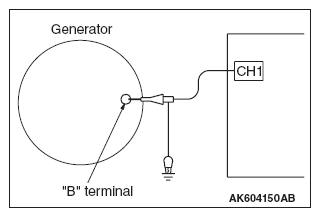

Connect the oscilloscope special patterns pick-up to the generator "B" terminal.
Fig 1: Checking Charging System Wave Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
