Removal And Installation: Notes

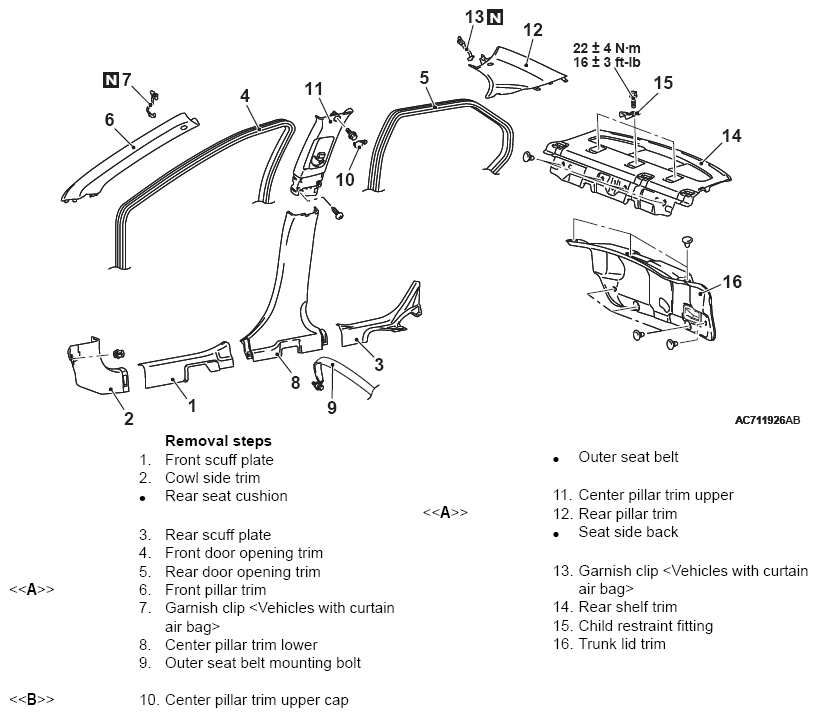

Fig 1: Removing/Installing Trims With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB990784: Ornament Remover

< TRUNK ROOM >

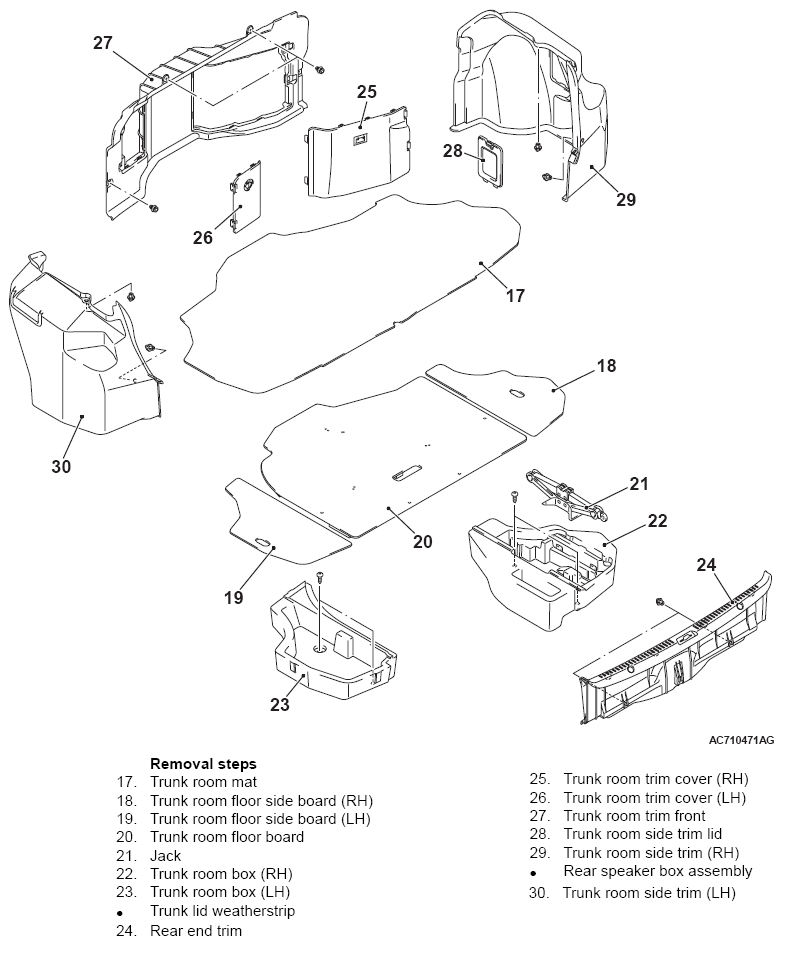

Fig 2: Removing/Installing Trims With Torque Specifications (Trunk Room)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
