Removal And Installation: Notes

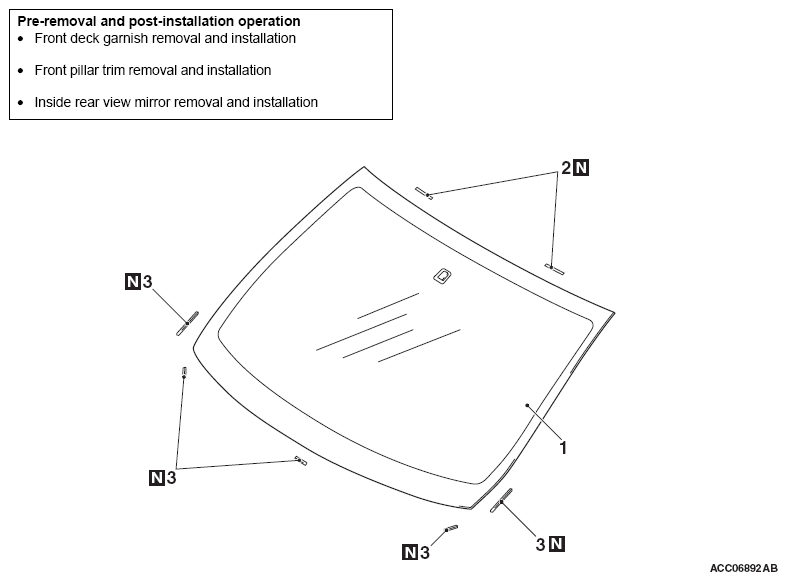

Fig 1: Removing/Installing Windshield And Mounting Bolts With Specifications (1 Of 2)
G09631875Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

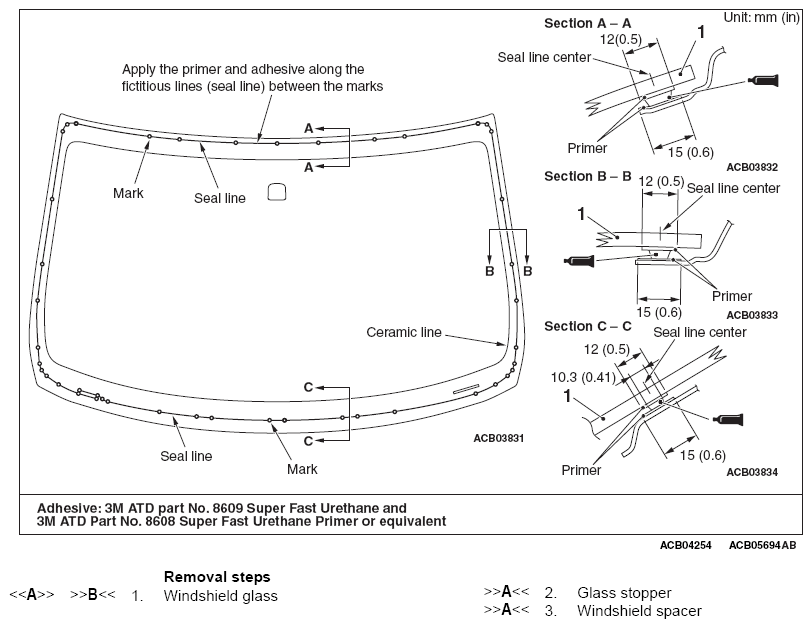

Fig 2: Removing/Installing Windshield And Mounting Bolts With Specifications (2 Of 2)
G09631876Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
