Removal And Installation: Notes

CAUTION: Never remove the accelerator pedal cover and connector. If the accelerator pedal cover removed, the accelerator pedal position sensor does not work normally.

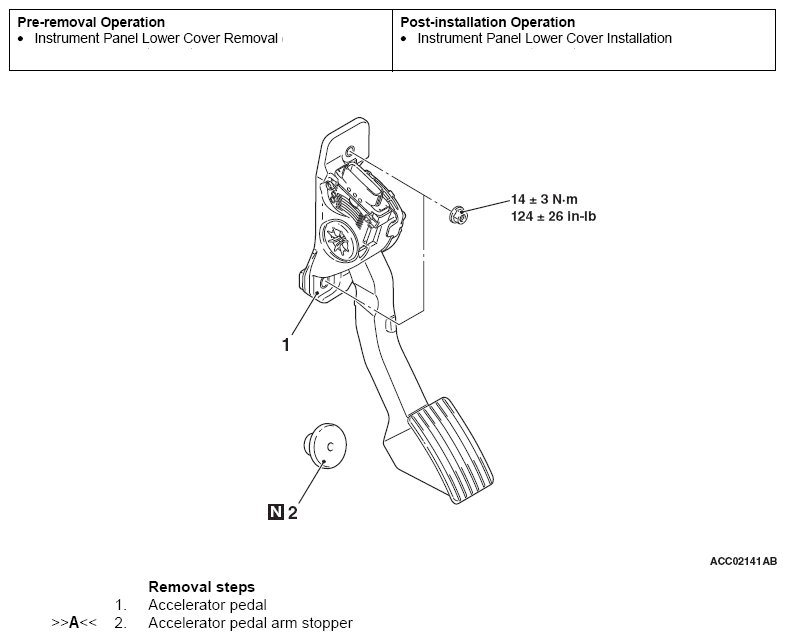

Fig 1: Accelerator Pedal Assembly & Arm Stopper With Torque Specification
G09628833Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
