Component Locations: Grounding

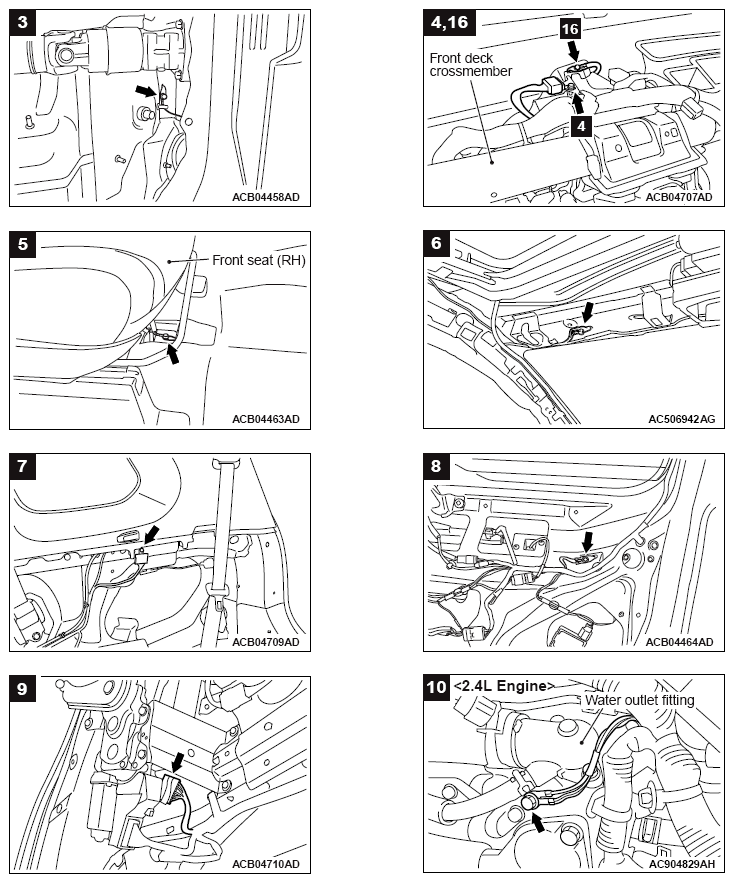

Fig 1: Grounding Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

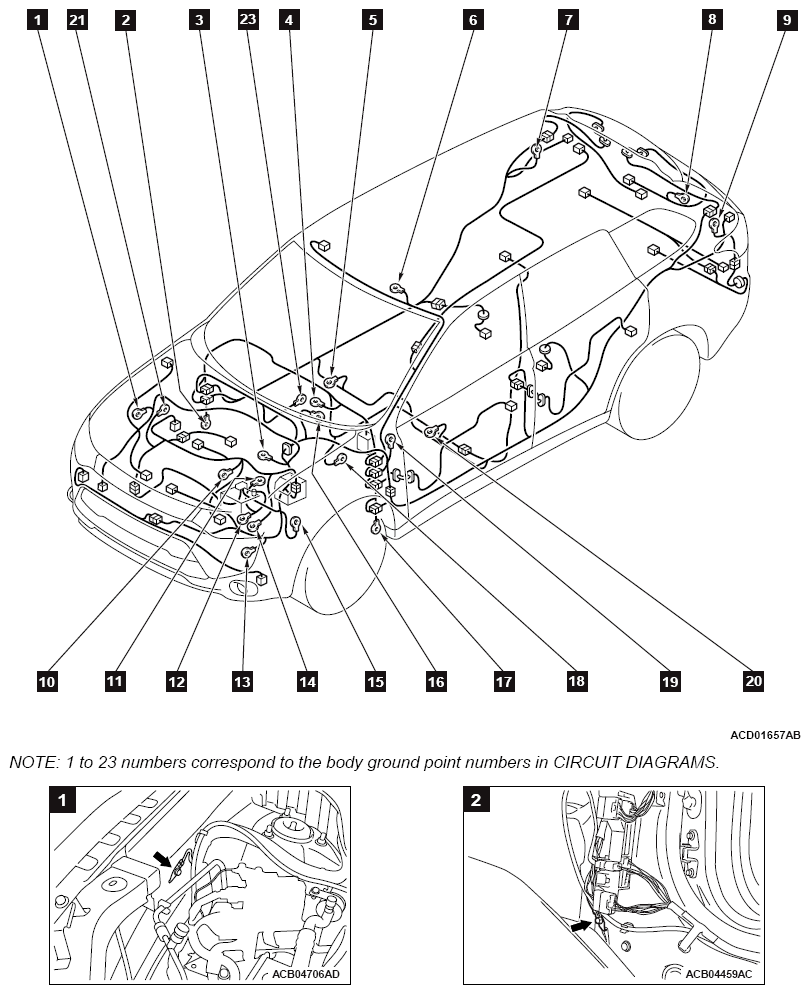

Fig 2: Grounding Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

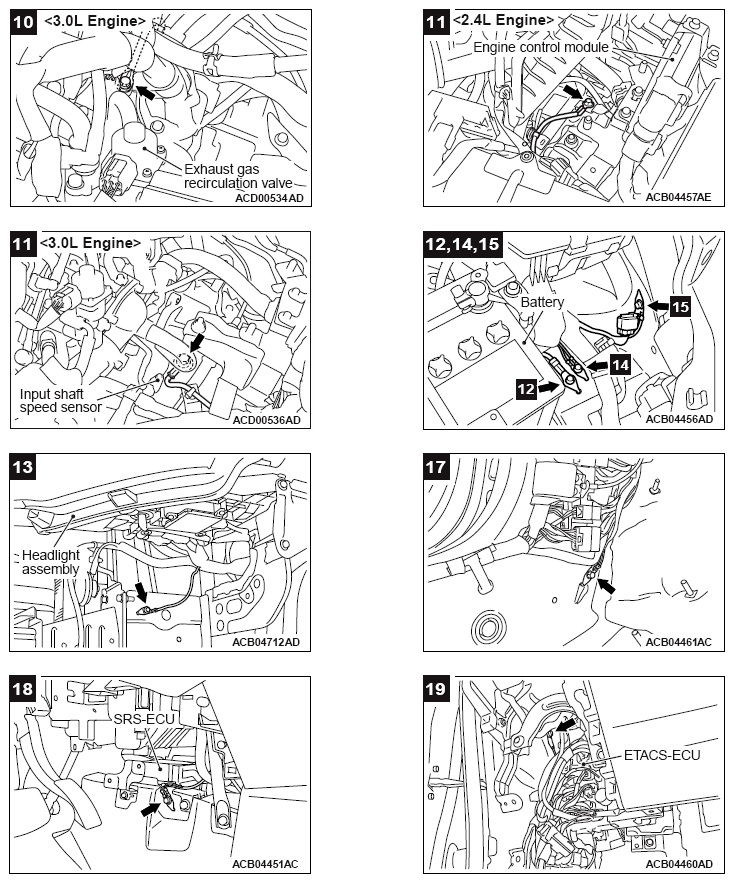

Fig 3: Grounding Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

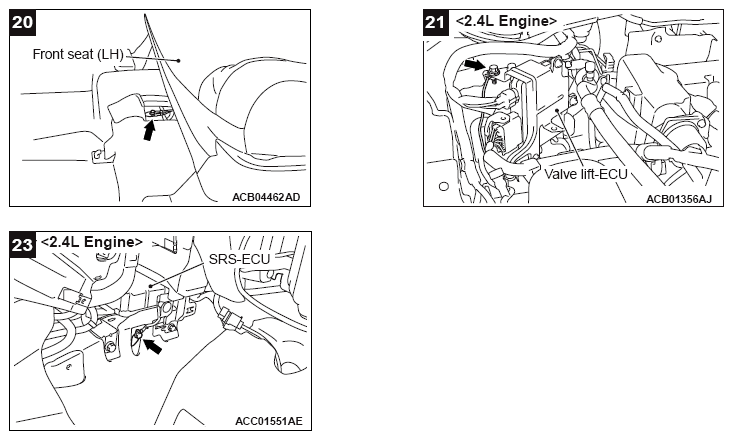

Fig 4: Grounding Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
