Special Tools

Tool Tool number and name Supersession Application
G09628470
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748

  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short
  5. V.C.I.-Lite USB cable long
 - Checking diagnostic trouble codes

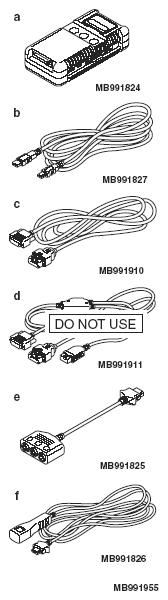

G05385694
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub-assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
Checking diagnostic trouble codes
