ASC Off Switch Continuity Check

  1. As shown in the figure, connect the circuit tester to the ASC OFF switch as a single unit.
  2. Check the continuity when the ASC OFF switch is pressed and released.

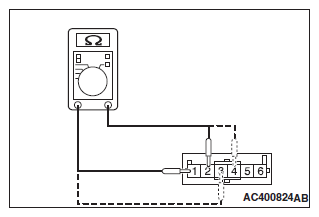

    Fig 1: Checking ASC OFF Switch Continuity
    G09627260Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Item When the ASC OFF switch is released (No operation status) When the ASC OFF switch is pressed
    Continuity between terminal No. 1 and No. 2 No continuity Continuity exists. (2 Ω or less)
    Continuity between terminal No. 3 and No. 4 Continuity exists. Continuity exists.
