Removal And Installation: Notes
WARNING:

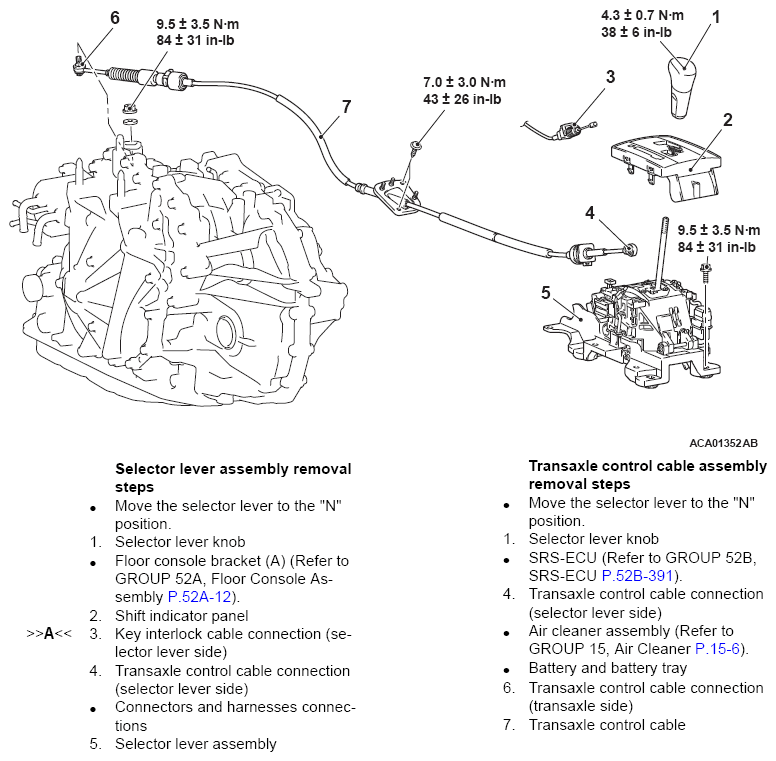

Be careful not to subject the SRS-ECU to any shocks during removal and installation of the transaxle control cable assembly.
Post-installation operation
- Key interlock mechanism check (Refer to KEY INTERLOCK MECHANISM CHECK/ADJUSTMENT .)
- Shift lock mechanism check (Refer to SHIFT LOCK MECHANISM CHECK .)
- Selector lever operation check (Refer to KEY INTERLOCK MECHANISM CHECK/ADJUSTMENT .)
- Transmission range switch and control cable adjustment (Refer to TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT .)
