Removal And Installation: Notes

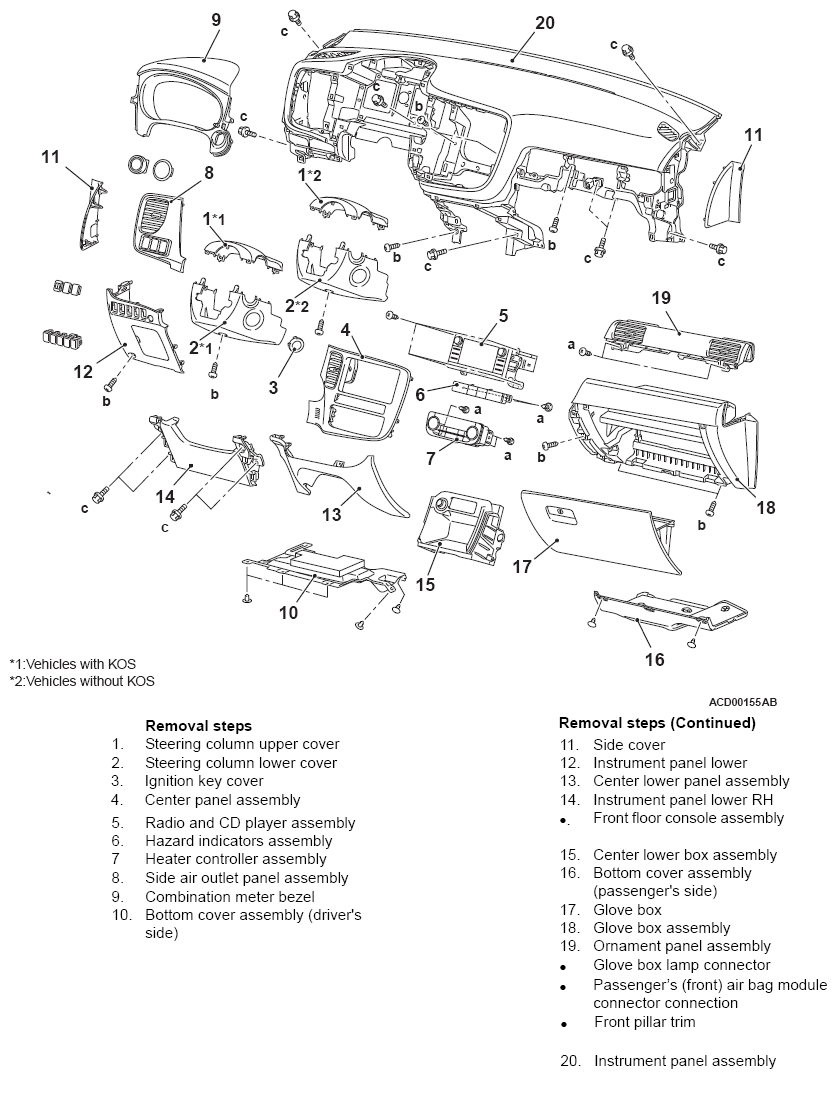

The following bolts and screws are used for installing the instrument panel: The bolts and screws are indicated by symbols in the illustrations in REMOVAL AND INSTALLATION and DISASSEMBLY AND ASSEMBLY .
| Name | Symbol | Dimensions mm (screw diameter X screw length) | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 X 14 | - | |
| b | 5 X 16 | - | ||
| Bolt with washer | c | 6 X 16 | - |
CAUTION:
- For the removal of the front passenger's air bag module, refer to SERVICE PRECAUTIONSDRIVER'S AND FRONT PASSENGER'S AIR BAG MODULE, AND CLOCK SPRING before operation.
- Do not subject SRS-ECU to any shocks when removing or installing the instrument panel.
