Starter Motor Assembly Inspection
>>
Disassembly And Reassembly
>>
Notes
Disassembly And Reassembly: Notes

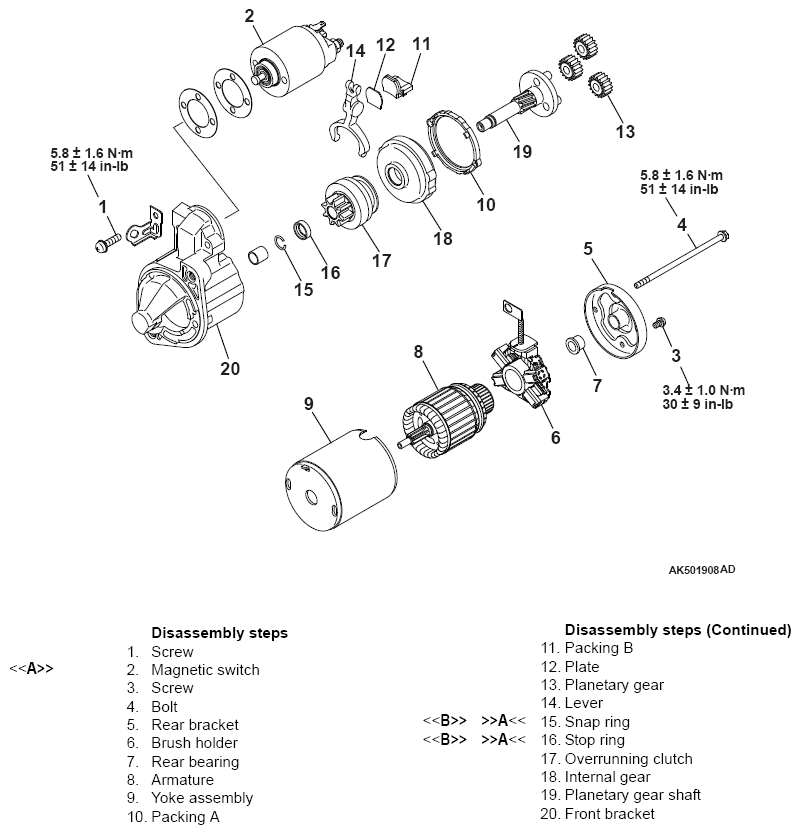

Fig 1: Disassembling/Reassembling Starting System Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
