Removal And Installation
Pre-removal and post-installation operation
Bottom Cover Assembly (driver's side) Removal and Installation (Refer to
INSTRUMENT PANEL ASSEMBLY
).

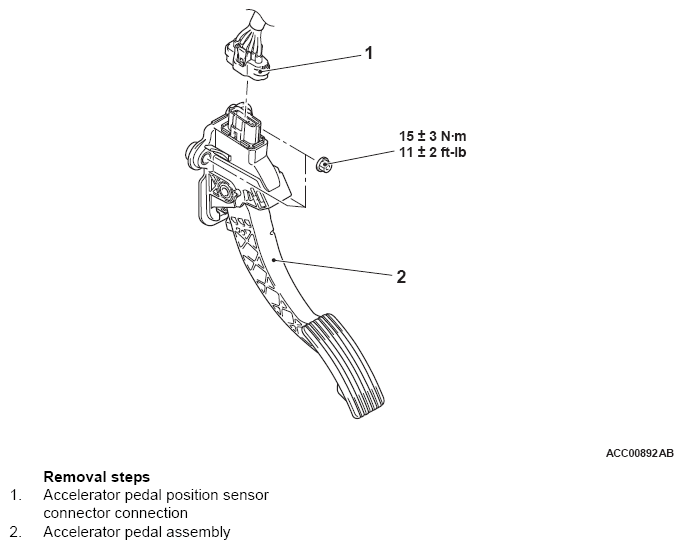

Fig 1: Removing/Installing Accelerator Pedal Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
