Component Locations: Relay

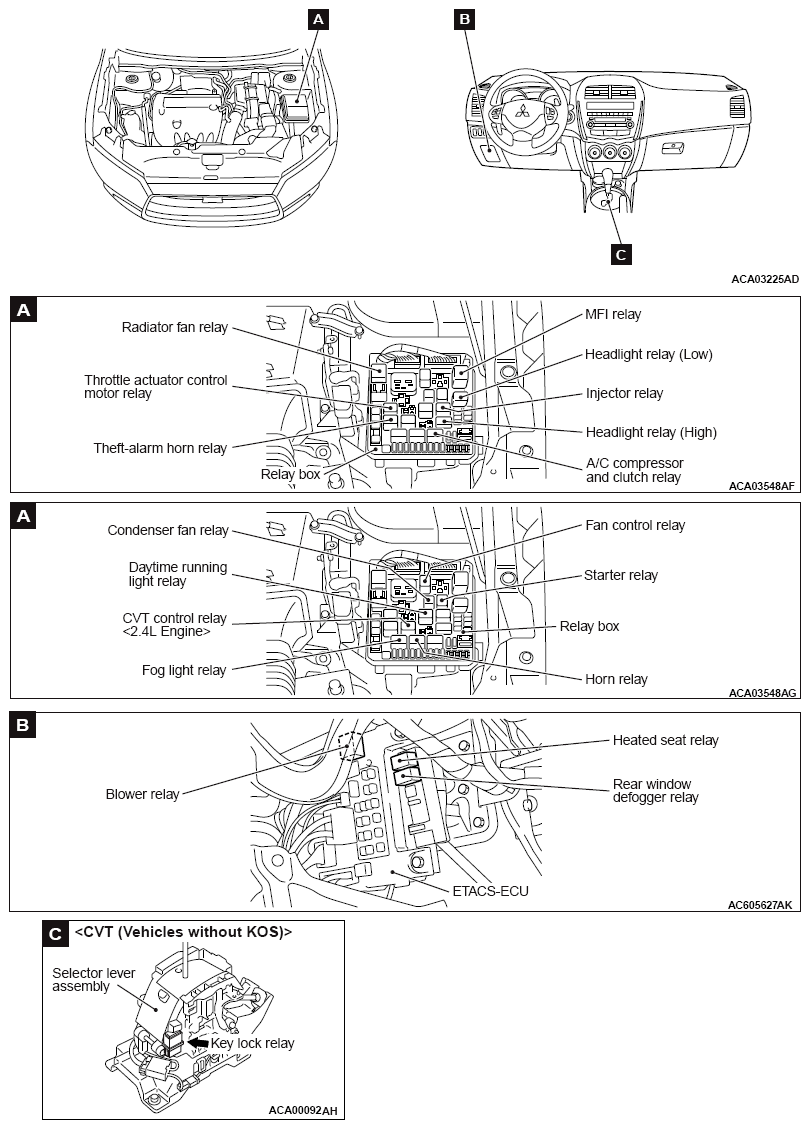

Fig 1: Vehicle Relay Component Location (2015)
G10233629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RELAY IDENTIFICATION (2015)

Name Symbol
A/C compressor and clutch relay A
Blower relay B
Condenser fan relay A
CVT control relay < 2.4L Engine > A
Daytime running light relay < LED type > A
Fan control relay A
Fog light relay A
Headlight relay (High) A
Headlight relay (Low) A
Heated seat relay B
Horn relay A
Injector relay A
Key lock relay < CVT (Vehicles without KOS) > C
MFI relay A
Radiator fan relay A
Rear window defogger relay B
Stoplight relay C
Theft-alarm horn relay A
Throttle actuator control motor relay A
Fig 2: Vehicle Relay Component Location (1 Of 2) (2016)
G00557988Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RELAY IDENTIFICATION (2016)

Name Symbol
A/C compressor and clutch relay A
Headlight relay (High) A
Headlight relay (Low) A
Injector relay A
MFI relay A
Radiator fan relay A
Theft-alarm horn relay A
Throttle actuator control motor relay A
Fig 3: Vehicle Relay Component Location (2 Of 2) (2016)
G00557989Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
RELAY IDENTIFICATION (2016)

Name Symbol
Blower relay B
Condenser fan relay A
CVT control relay < 2.4L Engine > A
Daytime running light relay < LED type > A
Fan control relay A
Fog light relay A
Heated seat relay B
Horn relay A
Key lock relay < CVT (Vehicles without KOS) > C
Radiator fan relay A
Rear window defogger relay B
Stoplight relay C
