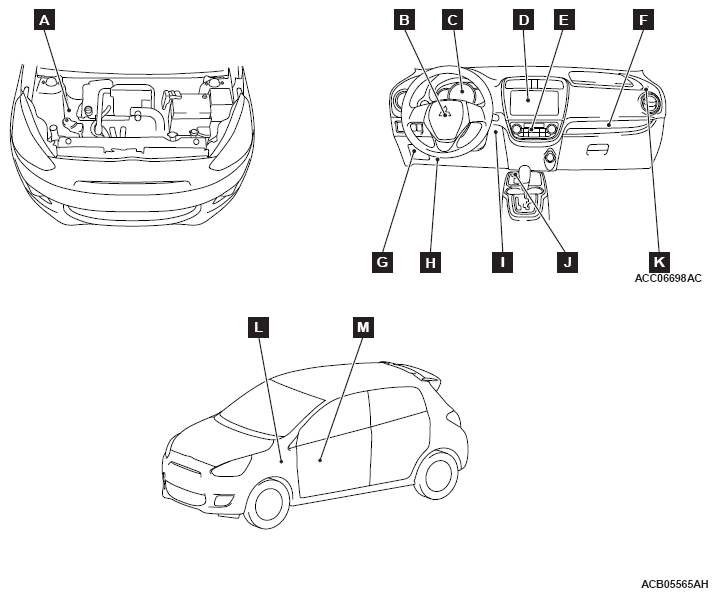

Control Unit

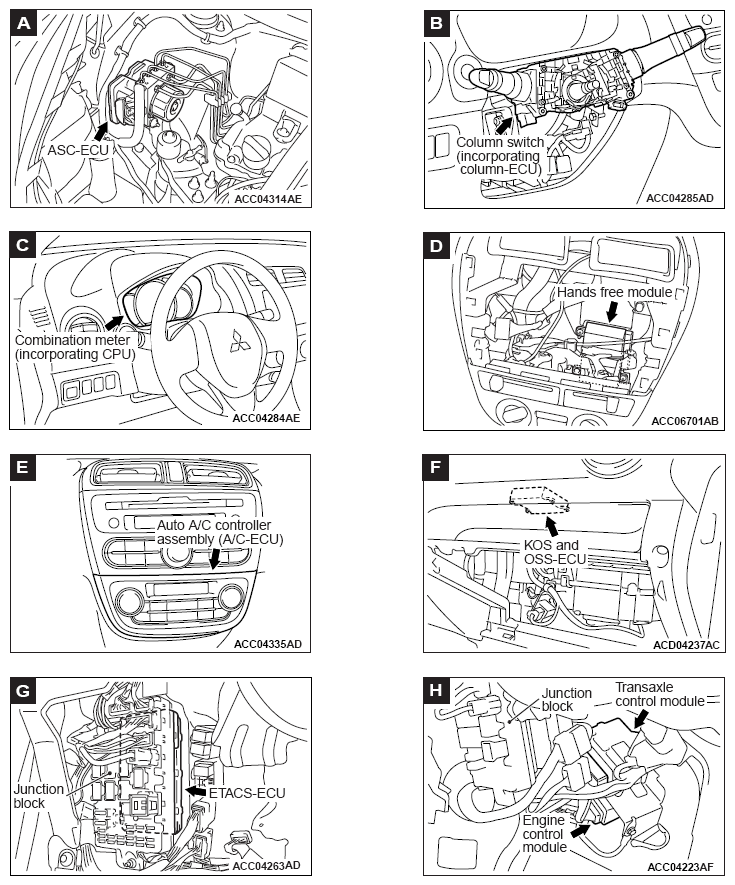

| Name | Symbol |
|---|---|
| ASC-ECU | A |
| Auto A/C controller assembly (A/C-ECU) | E |
| Column switch (incorporating column-ECU) | B |
| Combination meter (incorporating CPU) | C |
| Transaxle control module <CVT> | H |
| Engine control module | H |

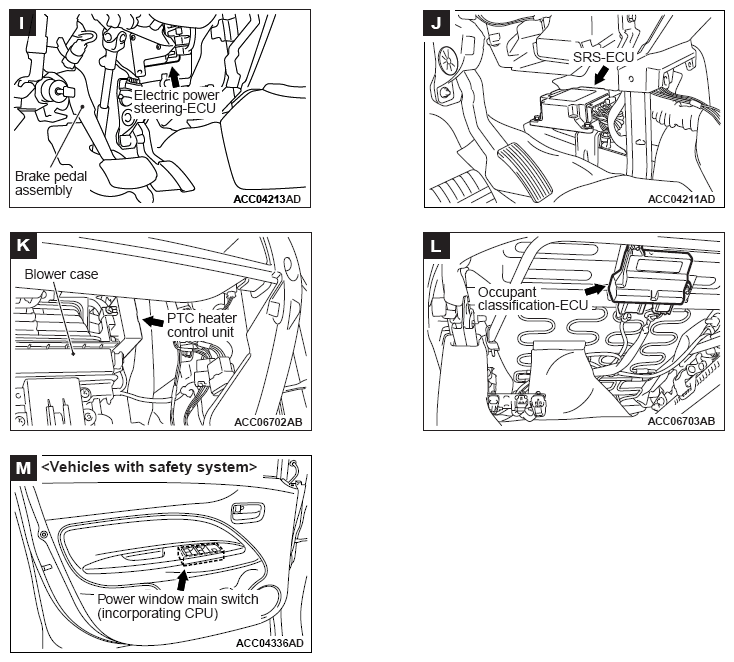

| Electric power steering-ECU | I |
| ETACS-ECU | G |
| Hands free module | D |
| KOS and OSS-ECU | F |
| Occupant classification-ECU | L |
| PTC heater control unit | K |
| Power window main switch (incorporating CPU) <Vehicles with safety system> | M |
| SRS-ECU | J |
