Removal And Installation: Notes

CAUTION: Never overhaul the V.V.T. sprocket assembly.

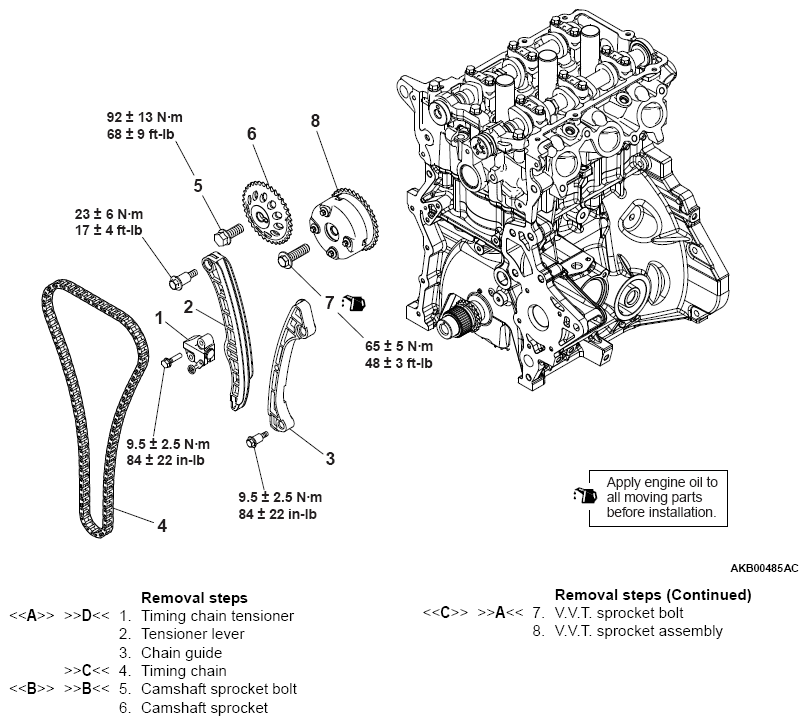

Fig 1: Timing Chain Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
