REMOVAL AND INSTALLATION <2.4 L Engine>: Notes

CAUTION:

• When the knock sensor is replaced, initialize the learned value using scan tool (M.U.T.-III) (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
• Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

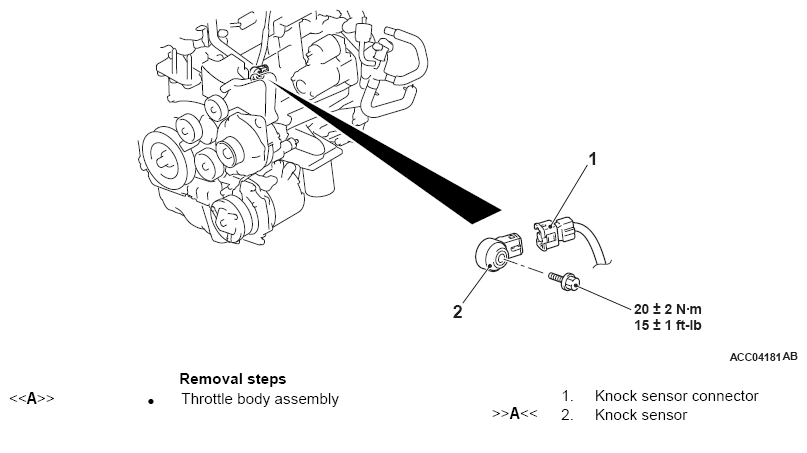

Fig 1: Removing/Installing Knock Sensor Components With Torque Specifications (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
