Removal And Installation: Notes

Pre-removal and post-installation operation

• Front deck garnish removal and installation (Refer to WINDSHIELD WIPER .)
• Front pillar trim removal and installation (Refer to INTERIOR TRIM .)
• Inside rear view mirror removal and installation (Refer to INSIDE REAR VIEW MIRROR )
• Lighting control sensor removal and installation < Vehicles with lighting control sensor > (Refer to HEADLIGHT .)

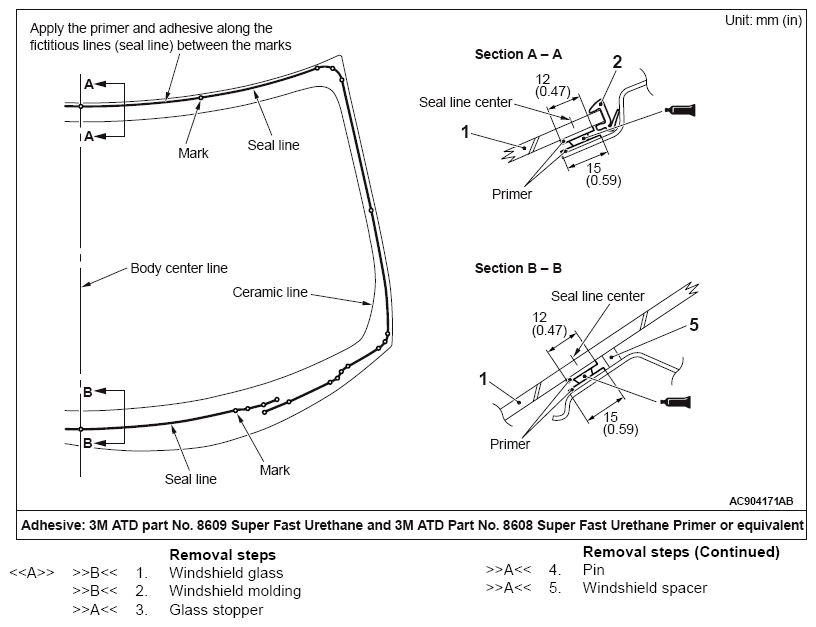

  Fig 1: Removing/Installing Windshield Components (1 Of 2)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  Fig 2: Removing/Installing Windshield Components (2 Of 2)

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
