Notes
Removal And Installation: Notes
Pre-removal operation
Drive Belt Removal (Refer to
CRANKSHAFT PULLEY
) < 2.0L ENGINE >.
Drive Belt Removal (Refer to
CRANKSHAFT PULLEY
) < 2.4L ENGINE >.
Post-installation operation
Drive Belt Installation (Refer to
CRANKSHAFT PULLEY
) < 2.0L ENGINE >.
Drive Belt Installation (Refer to
CRANKSHAFT PULLEY
) < 2.4L ENGINE >.
Drive Belt Tension Check (Refer to
DRIVE BELT TENSION CHECK
) < 2.0L ENGINE >.
Drive Belt Tension Check (Refer to
DRIVE BELT TENSION CHECK
) < 2.4L ENGINE >.

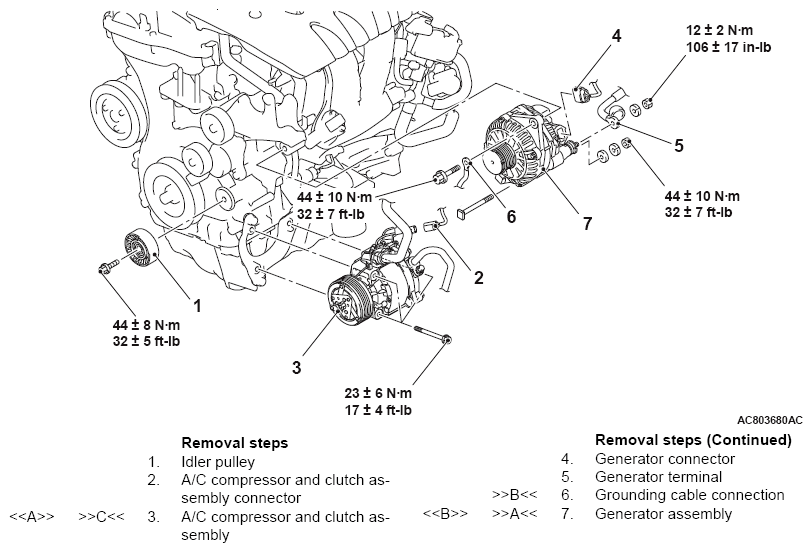

Fig 1: Generator Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
