Control Unit

Name	Symbol
AWD-ECU	C
A/C control panel (incorporating ECU)	K
ASC-ECU	A
Column switch (incorporating column-ECU)	D
Combination meter (incorporating CPU)	E
Electric power steering-ECU	I
Engine control module	B
ETACS-ECU	H
Front seat assembly (RH) (incorporating occupant classification-ECU)	N
Hands free module	F
Headlight control unit < Vehicles with discharge type headlight >	M
KOS-ECU	G
OSS-ECU < Vehicles with KOS >	G
Power window main switch (incorporating CPU)	O
SRS-ECU	J
Sunshade motor assembly (incorporating CPU)	L
Transaxle control module < CVT >	C
WCM < Vehicles without KOS >	H

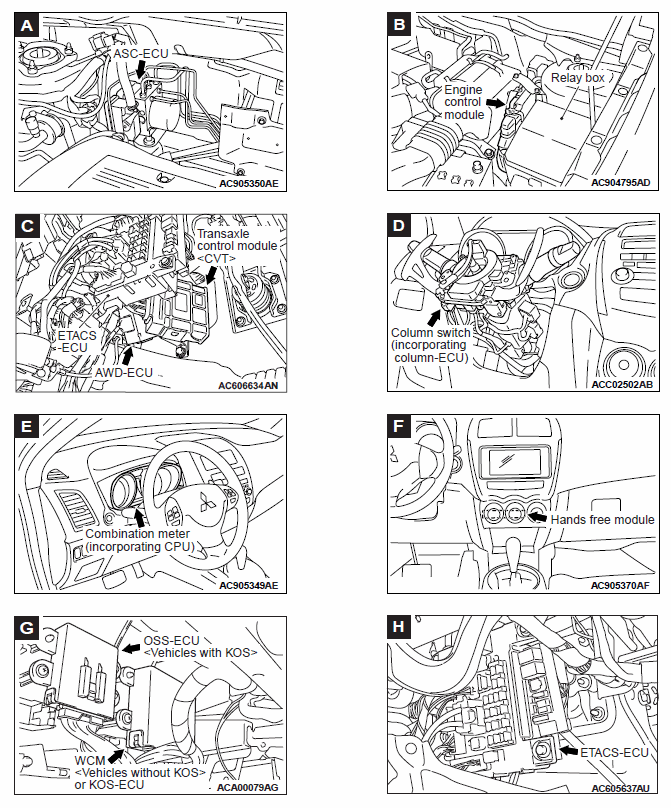

Fig 1: Control Unit Component Location (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

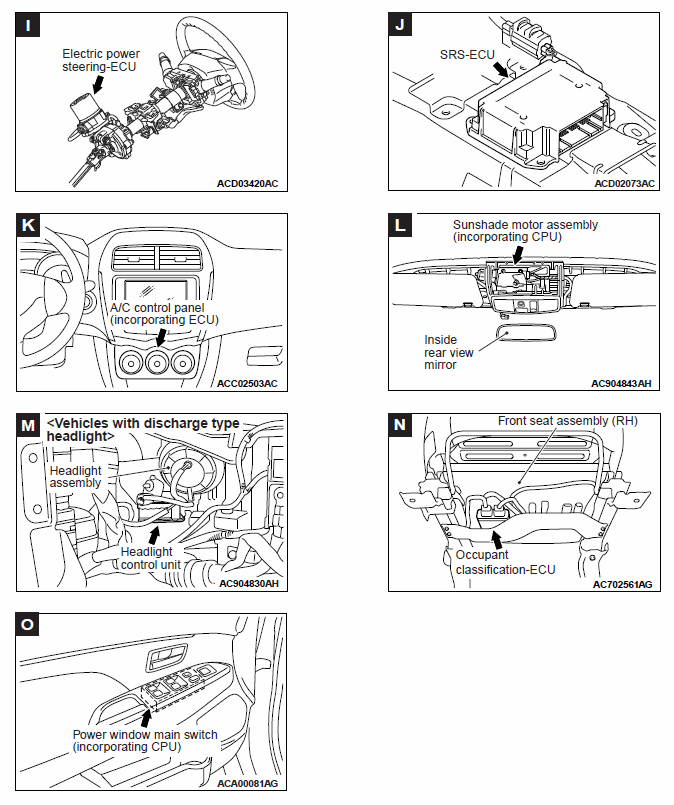

Fig 2: Control Unit Component Location (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: *:also equipped at right side.

Name	Symbol
AWD-ECU	C
A/C control panel (incorporating ECU)	K
ASC-ECU	A
Column switch (incorporating column-ECU)	D
Combination meter (incorporating CPU)	E
Electric power steering-ECU	I
Engine control module	B
ETACS-ECU	H
Front seat assembly (RH) (incorporating occupant classification-ECU)	N
Hands free module	F
Headlight control unit < Vehicles with discharge type headlight >	M
KOS-ECU	G
OSS-ECU < Vehicles with KOS >	G
Power window main switch (incorporating CPU)	O
SRS-ECU	J
Sunshade motor assembly (incorporating CPU)	L
Transaxle control module < CVT >	C
WCM < Vehicles without KOS >	H

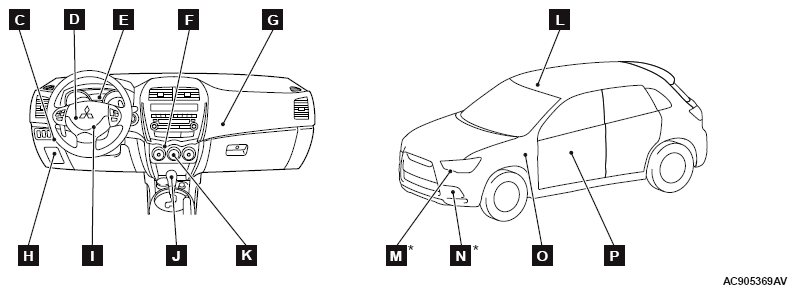

Fig 3: Right Side Control Unit Component Location (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

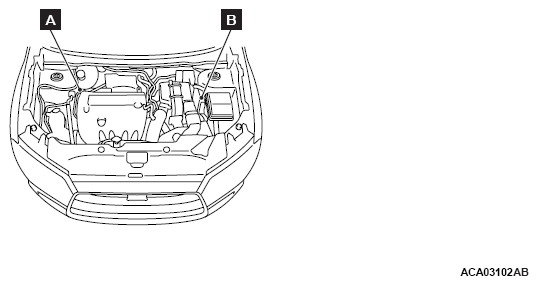

Fig 4: Right Side Control Unit Component Location (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
