Component Locations: Grounding

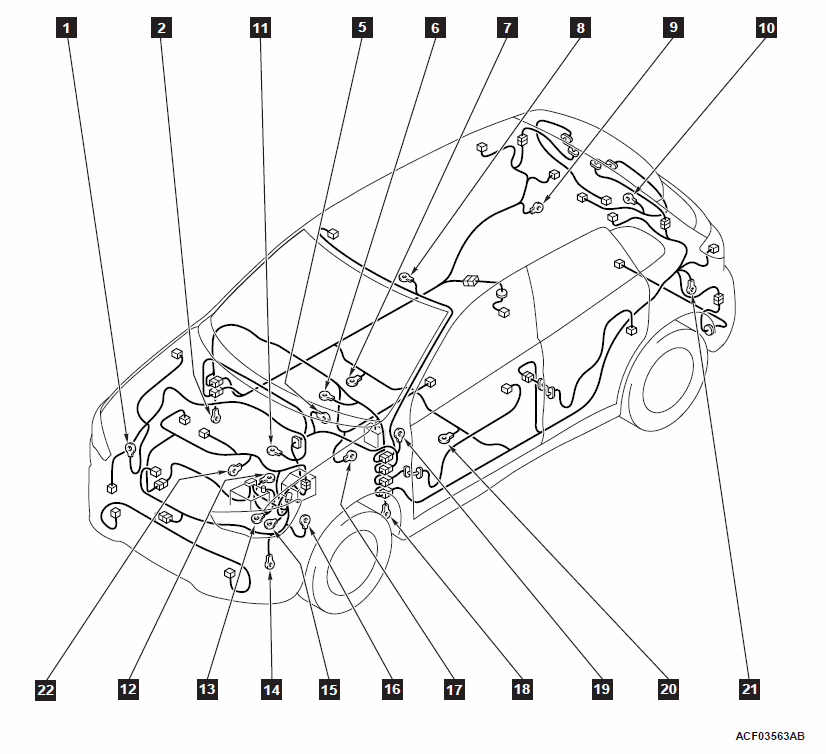

Fig 1: Identifying Vehicle Grounding Points

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Same ground numbers are used in the circuit diagram.

Fig 2: Locating Vehicle Grounding Points (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

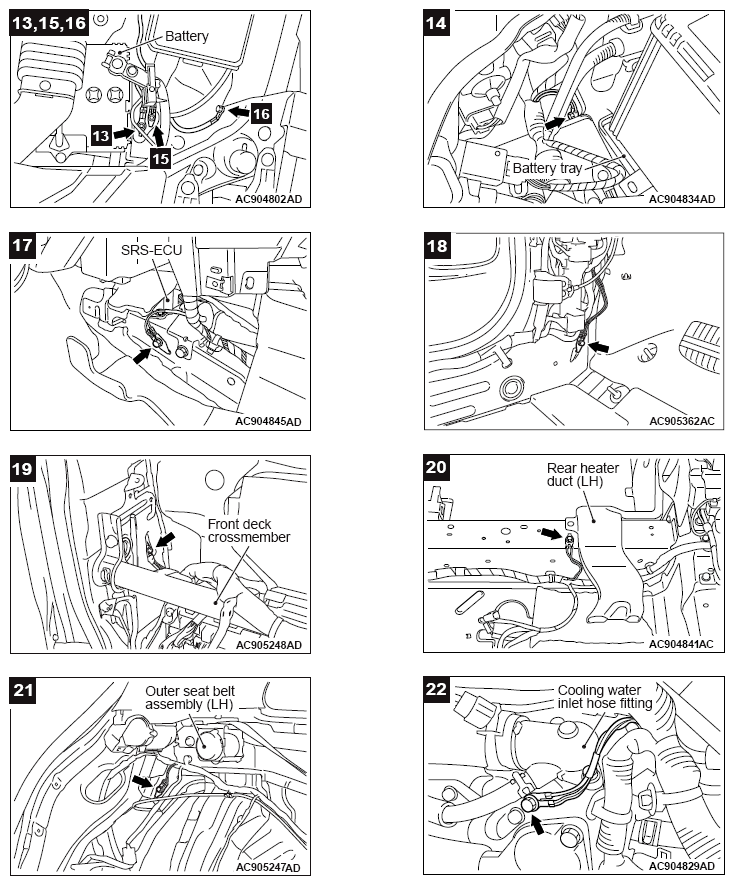

Fig 3: Locating Vehicle Grounding Points (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
