Component Locations: Relay

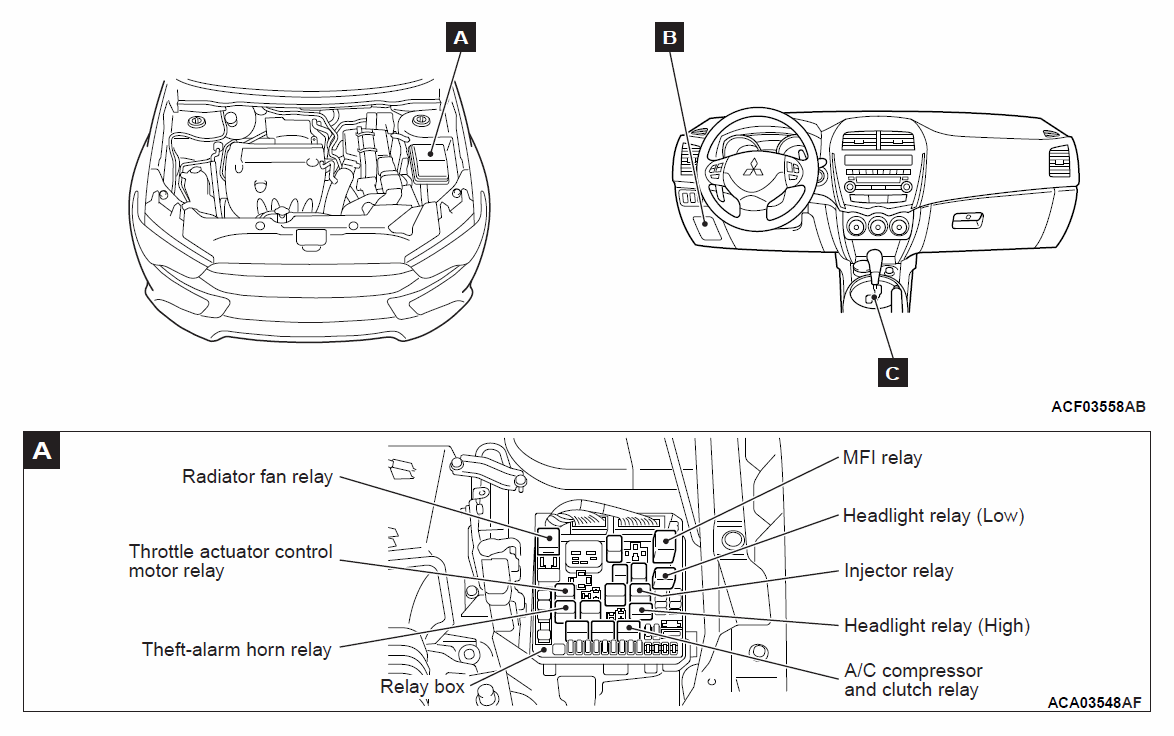

Fig 1: Vehicle Relay Component Location (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RELAY IDENTIFICATION

Name	Symbol
A/C compressor and clutch relay	A
Headlight relay (High)	A
Headlight relay (Low)	A
Injector relay	A
MFI relay	A
Radiator fan relay	A
Theft-alarm horn relay	A
Throttle actuator control motor relay	A

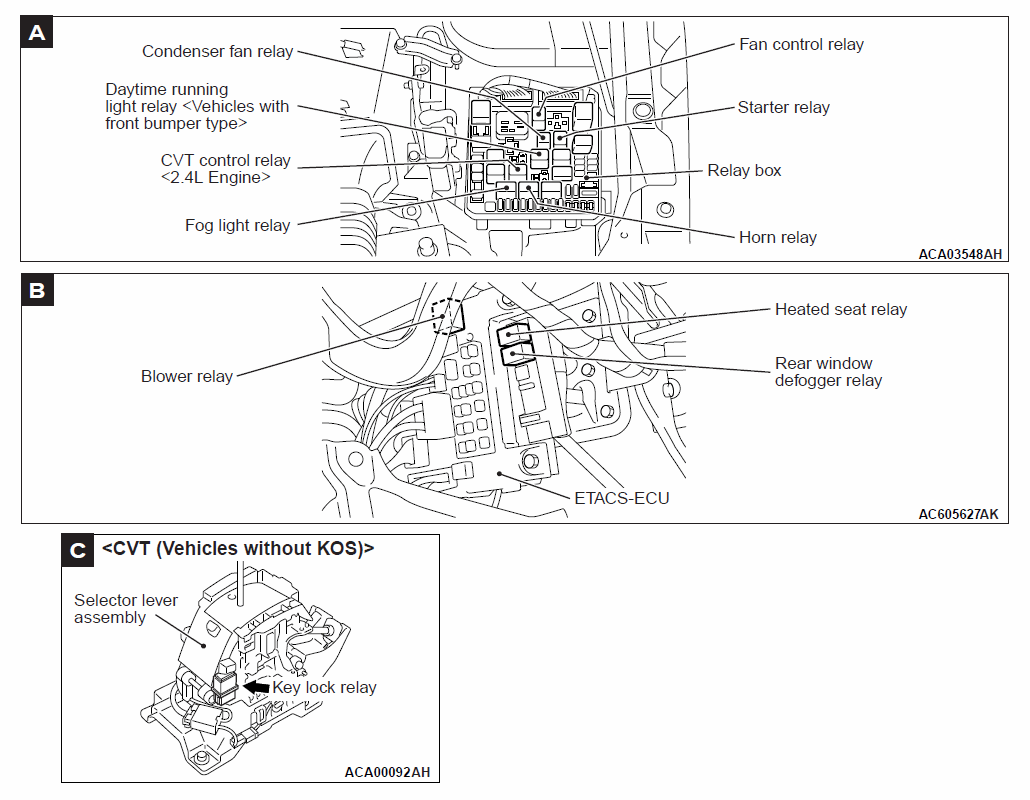

Fig 2: Vehicle Relay Component Location (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RELAY IDENTIFICATION

Name	Symbol
Blower relay	B
Condenser fan relay	A
CVT control relay < 2.4L Engine >	A
Daytime running light relay < LED type >	A
Fan control relay	A
Fog light relay	A
Heated seat relay	B
Horn relay	A
Key lock relay < CVT (Vehicles without KOS) >	C
Radiator fan relay	A
Rear window defogger relay	B
Stoplight relay	C
