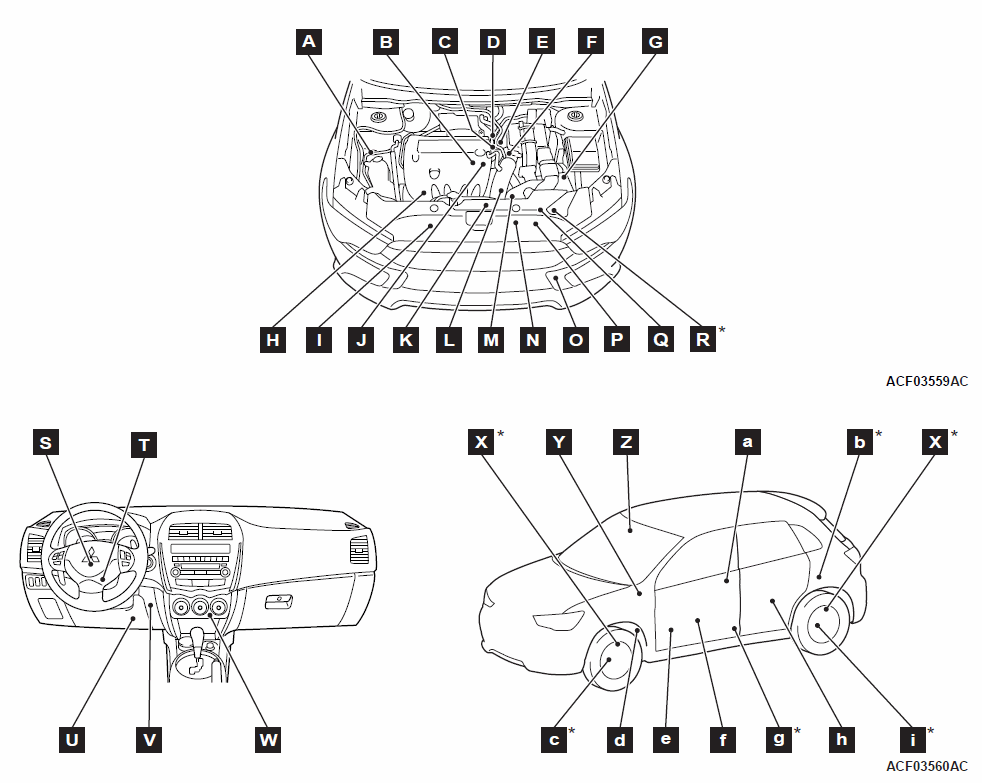

Component Locations: Sensor

Name	Symbol
A/C pressure sensor	A
Accelerator pedal position sensor	U
Ambient air temperature sensor	P
Battery current sensor	H
Crankshaft position sensor	B
Engine coolant temperature sensor	D
Exhaust camshaft position sensor	E
Fin thermo sensor	W
Front impact sensor	R
Front light sensor < Vehicles with automatic anti-dazzling mirror >	Z
Front wheel speed sensor	c
Fuel level sensor (sub) < AWD >	a
Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor)	h
Fuel tank differential pressure sensor	h
Heated oxygen sensor (rear) < 2.0L Engine >	d
Heated oxygen sensor (rear) < 2.4L Engine >	e
Intake camshaft position sensor	K
Interior temperature sensor < Automatic A/C >	V
Knock sensor	I
Lighting control sensor < Vehicles with automatic light >	Z
Linear air-fuel ratio sensor < 2.0L Engine >	C
Linear air-fuel ratio sensor < 2.4L Engine >	d
Manifold absolute pressure sensor	J
Mass airflow sensor	G
Primary pulley speed sensor < 2.4L Engine >	Q
Primary pulley speed sensor < 2.0L Engine-CVT >	O
Rear light sensor < Vehicles with automatic anti-dazzling mirror >	Z
Rear wheel speed sensor	i
Seat slide sensor	f
Secondary pulley speed sensor < 2.0L Engine-CVT >	O
Secondary pulley speed sensor < 2.4L Engine >	F
Side impact sensor (front)	g
Side impact sensor (rear)	b
Steering wheel sensor	S
Throttle body assembly (incorporating throttle position sensor)	L
Torque sensor	T
TPMS transmitter (incorporating tire pressure sensor)	X
Turbine speed sensor < 2.0L Engine-CVT >	N
Vehicle speed sensor < M/T >	M
Weight sensor < M/T >	Y

Name	Symbol

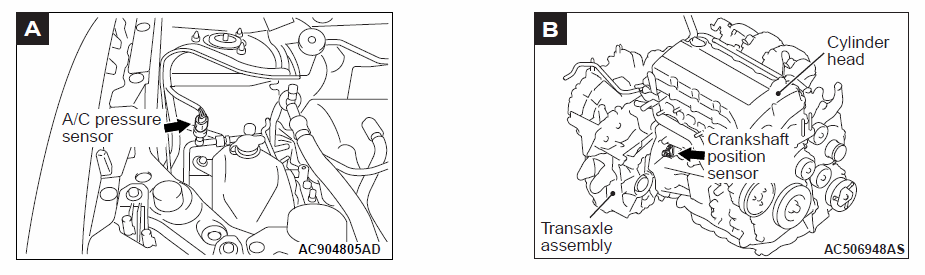

A/C pressure sensor	A
Accelerator pedal position sensor	U
Ambient air temperature sensor	O
Battery current sensor	G
Crankshaft position sensor	B
CVT assembly (incorporating turbine speed sensor) <2.4L Engine>	Q

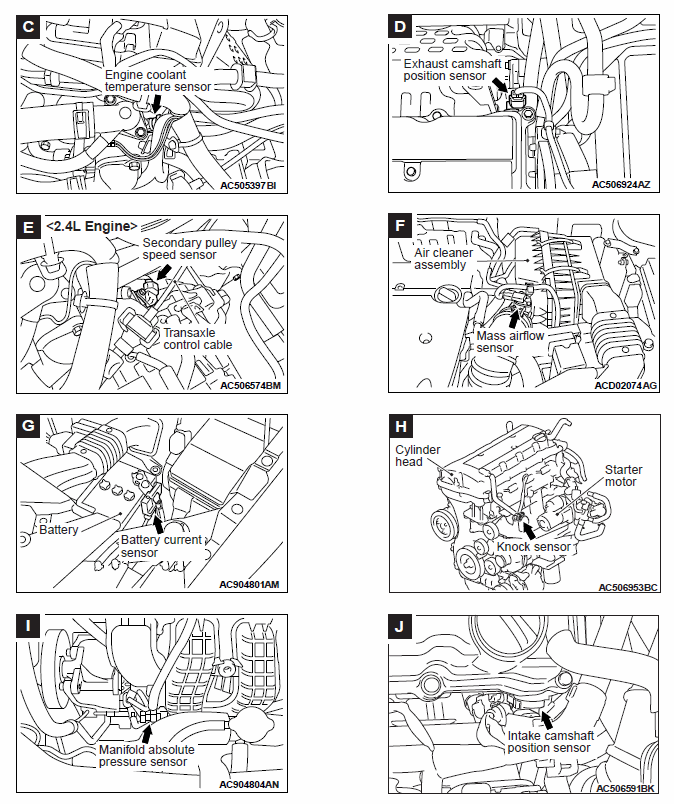

Engine coolant temperature sensor	C
Exhaust camshaft position sensor	D
Fin thermo sensor	W
Front impact sensor	R
Front light sensor < Vehicles with automatic anti-dazzling mirror >	Z
Front wheel speed sensor	c
Fuel level sensor (sub) < AWD >	a
Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor)	h
Fuel tank differential pressure sensor	h
Intake camshaft position sensor	J
Interior temperature sensor < Automatic A/C >	V
Knock sensor	H

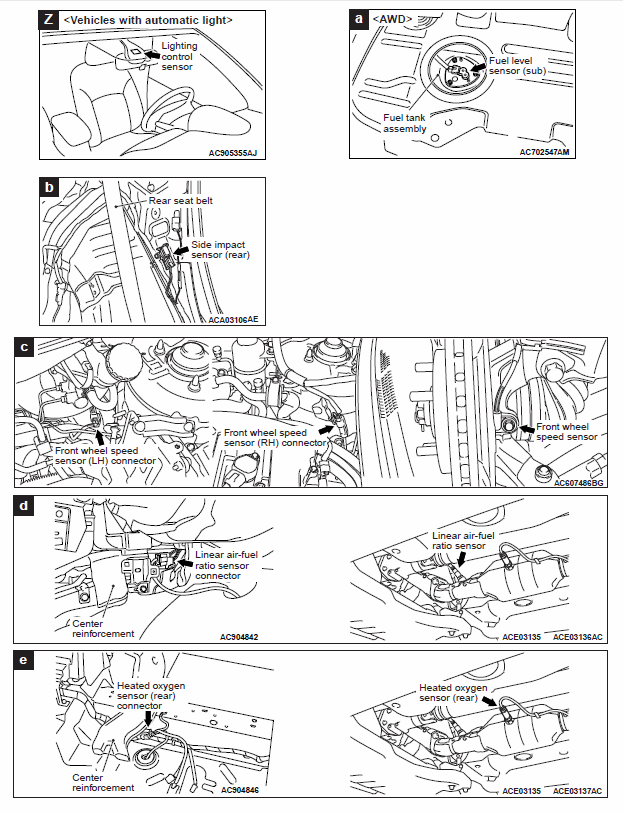

Lighting control sensor < Vehicles with automatic light >	Z
Linear air-fuel ratio sensor	d
Manifold absolute pressure sensor	I
Mass airflow sensor	F
Primary pulley speed sensor < 2.0L Engine-CVT >	N
Primary pulley speed sensor <2.4L Engine>	P
Rear light sensor < Vehicles with automatic anti-dazzling mirror >	Z
Rear wheel speed sensor	i

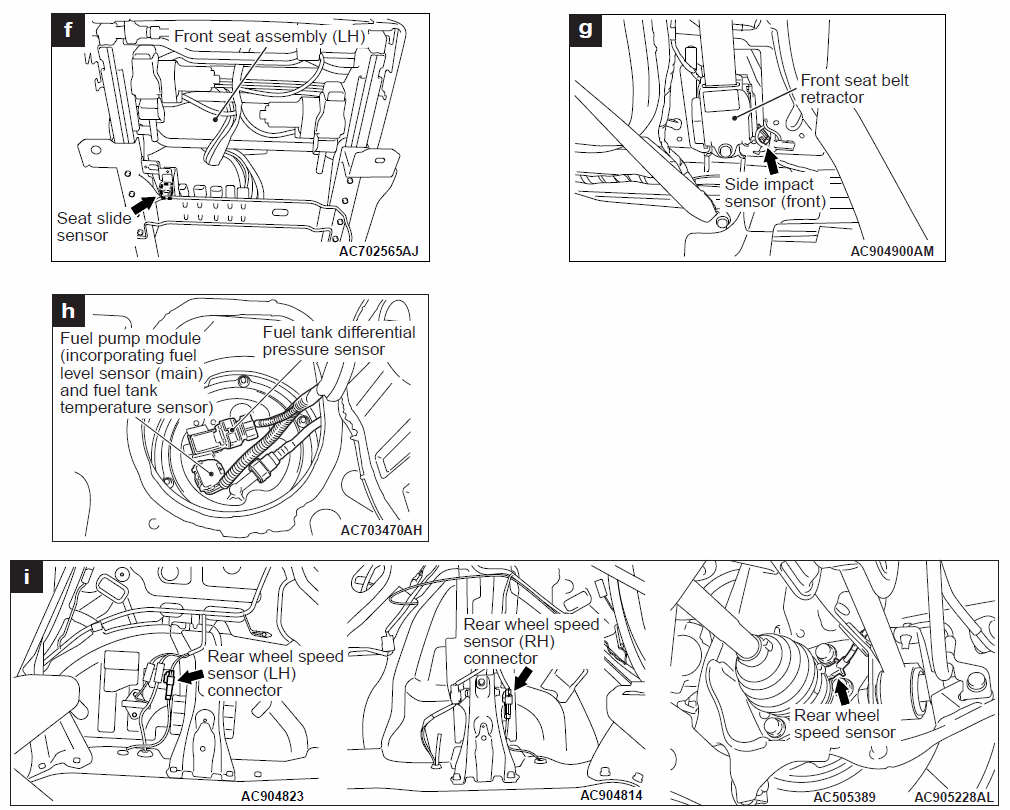

Seat slide sensor	f
Secondary pulley speed sensor < 2.0L Engine-CVT >	N
Secondary pulley speed sensor < 2.4L Engine >	E
Side impact sensor (front)	g
Side impact sensor (rear)	b

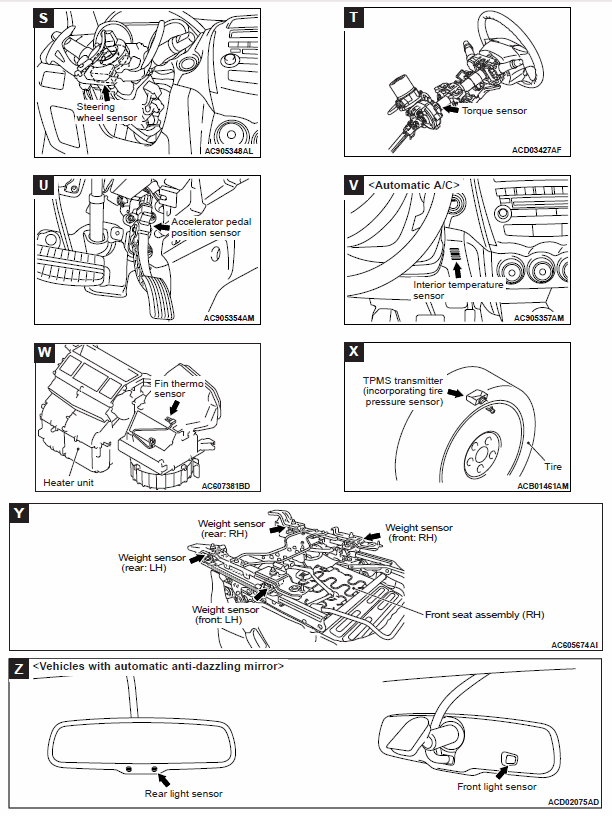

Steering wheel sensor	S
Throttle body assembly (incorporating throttle position sensor)	K
Torque sensor	T
TPMS transmitter (incorporating tire pressure sensor)	X
Turbine speed sensor < 2.0L Engine-CVT >	M
Vehicle speed sensor < M/T >	L
Weight sensor < M/T >	Y
