Disassembly And Assembly: Notes

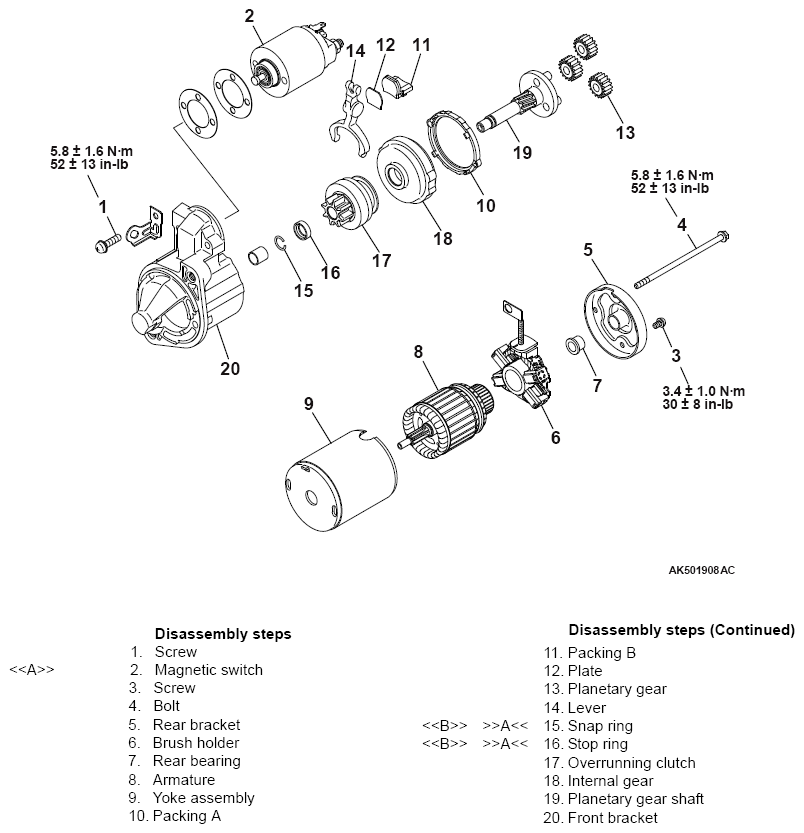

Fig 1: Exploded View Of Starter Motor Assembly With Tightening Torque
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
