Generator Assembly: Inspection: Stator

Check the electrical continuity of the points shown in the table below. Confirm that there is electrical continuity.

If there is not, replace the generator assembly.

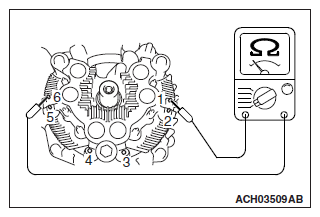

Fig 1: Checking Electrical Continuity Between Stator Coil Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal connector of tester	Electrical continuity
1 - 2	Presence of electrical continuity
1 - 3
2 - 3
4 - 5
4 - 6
5 - 6
