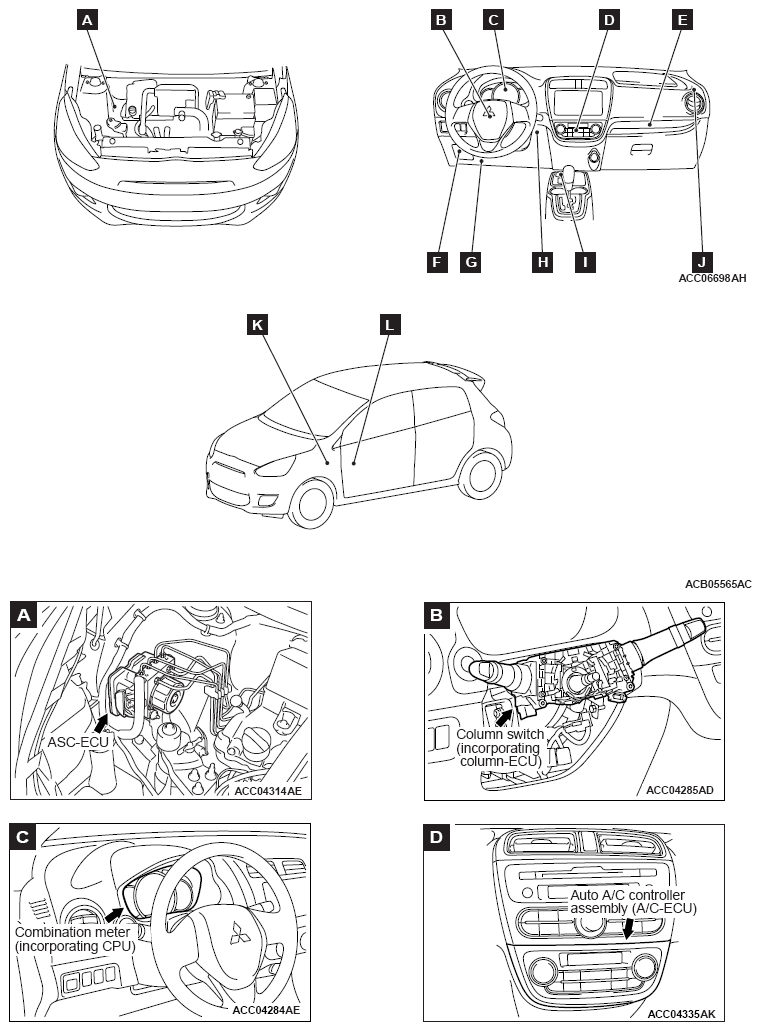

Control Unit
| Name | Symbol |
|---|---|
| ASC-ECU | A |
| Auto A/C controller assembly (A/C-ECU) | D |
| Column switch (incorporating column-ECU) | B |
| Combination meter (incorporating CPU) | C |
| Transaxle control module <CVT> | G |
| Engine control module | G |
| Electric power steering-ECU | H |
| ETACS-ECU | F |
| KOS and OSS-ECU | E |
| Occupant classification-ECU | K |
| PTC heater control unit | J |
| Power window main switch (incorporating CPU) <Vehicles with safety system> | L |
| SRS-ECU | I |
