| A/C pressure sensor |
H |
| Accelerator pedal position sensor |
P |
| Ambient temperature sensor |
L |
| Brake vacuum sensor |
F |
| Camshaft position sensor |
B |
| Crankshaft position sensor |
I |
| CVT assembly (incorporating CVT fluid temperature sensor and secondary pressure sensor) |
S |
| Engine coolant temperature sensor |
E |
| Fin thermo sensor |
R |

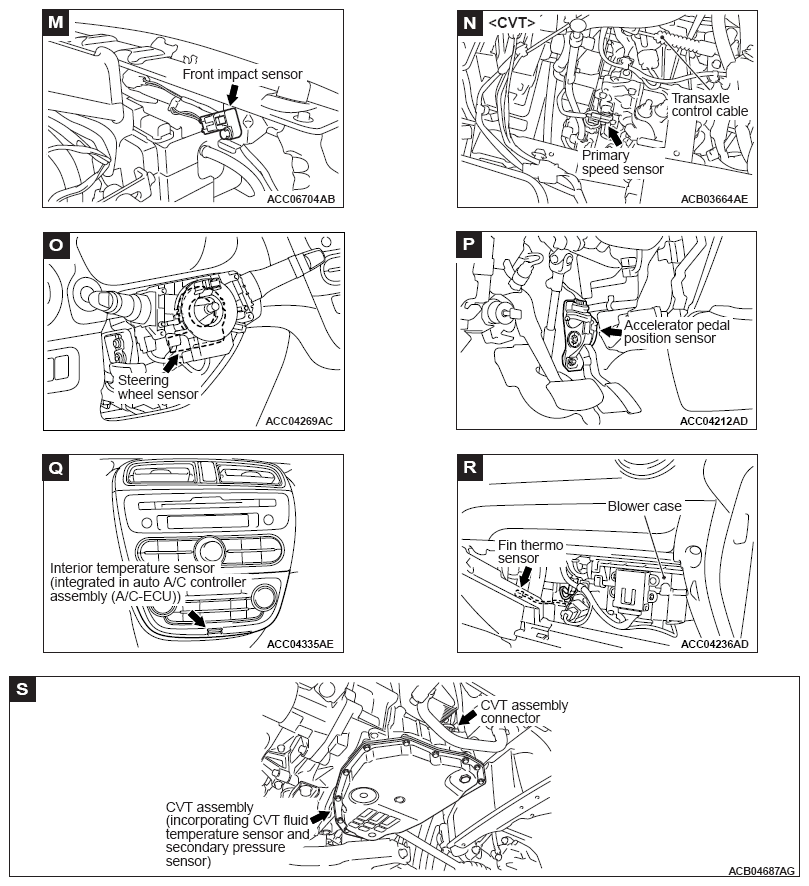

| Front impact sensor |
M |
| Front wheel speed sensor |
X |
| Fuel pump module (incorporating fuel level sensor and fuel tank temperature sensor) |
Z |
| Fuel tank differential pressure sensor |
Z |

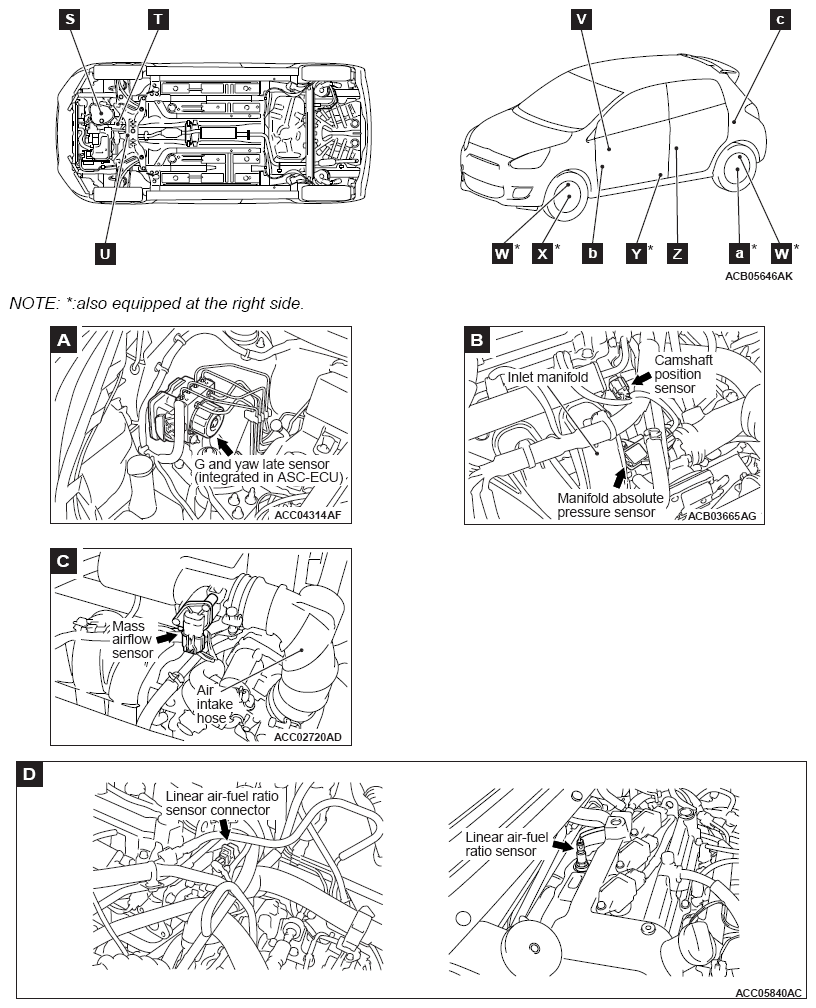

| G and yaw late sensor (integrated in ASC-ECU) |
A |
| Heated oxygen sensor (rear) |
U |
| Interior temperature sensor (integrated in auto A/C controller assembly (A/C-ECU)) |
Q |
| Knock sensor |
J |
| Linear air-fuel ratio sensor |
D |
| Manifold absolute pressure sensor |
B |
| Mass airflow sensor |
C |
| Occupant classification sensor |
V |

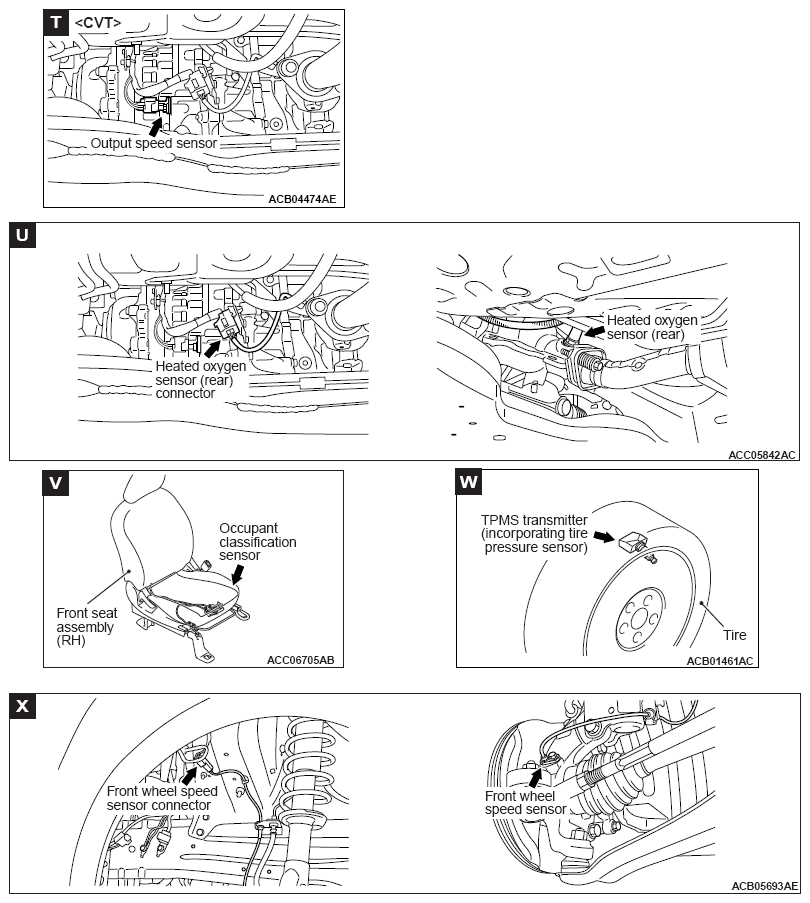

| Output speed sensor <CVT> |
T |
| Primary speed sensor <CVT> |
N |
| Rear wheel speed sensor |
a |
| Seat slide sensor |
b |
| Secondary speed sensor <CVT> |
G |

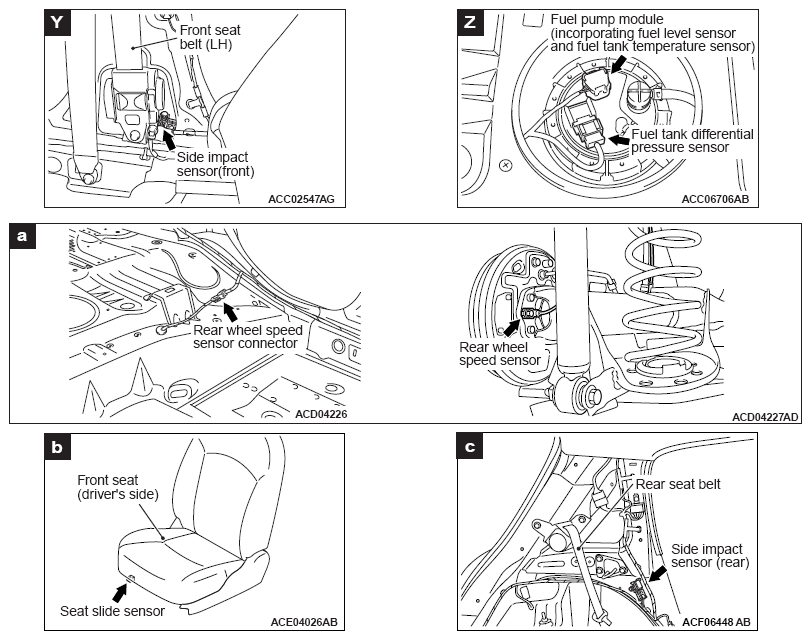

| Side impact sensor (front) |
Y |
| Side impact sensor (rear) |
c |
| Steering wheel sensor |
O |
| Throttle body assembly (incorporating throttle position sensor) |
K |
| TPMS transmitter (incorporating tire pressure sensor) |
W |
