Home >> Mitsubishi >> 2018 >> Outlander GT >> Repair and Diagnosis >> Electrical >> Component Locations >> Grounding

Component Locations: Grounding

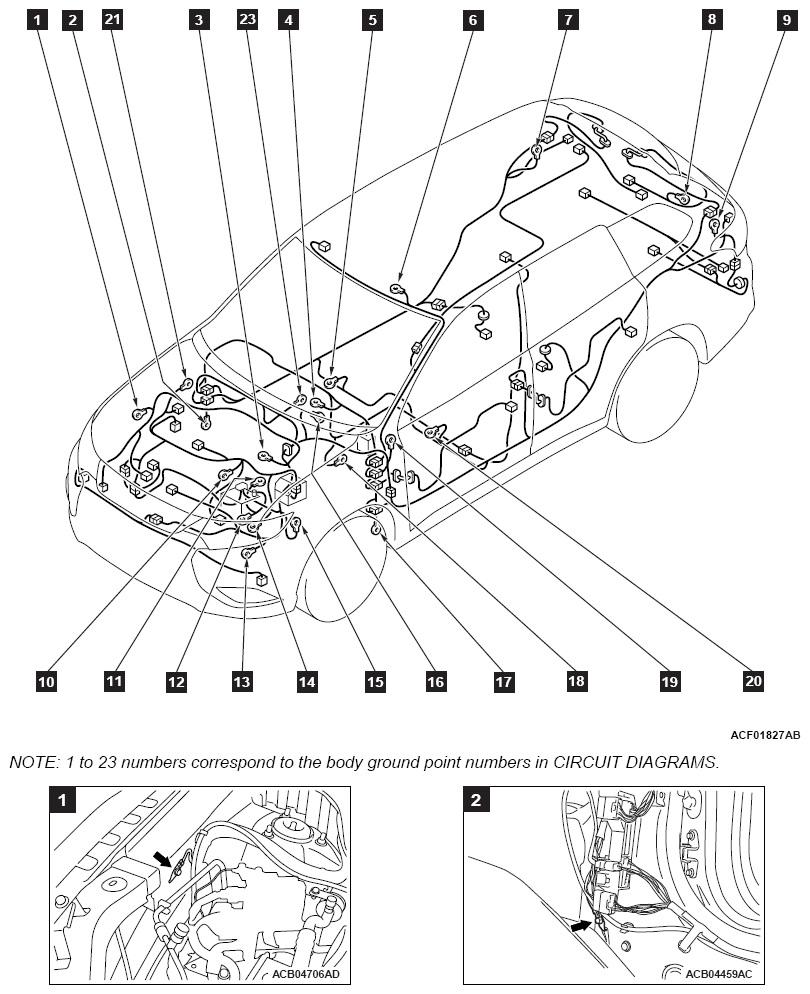

G12371122Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

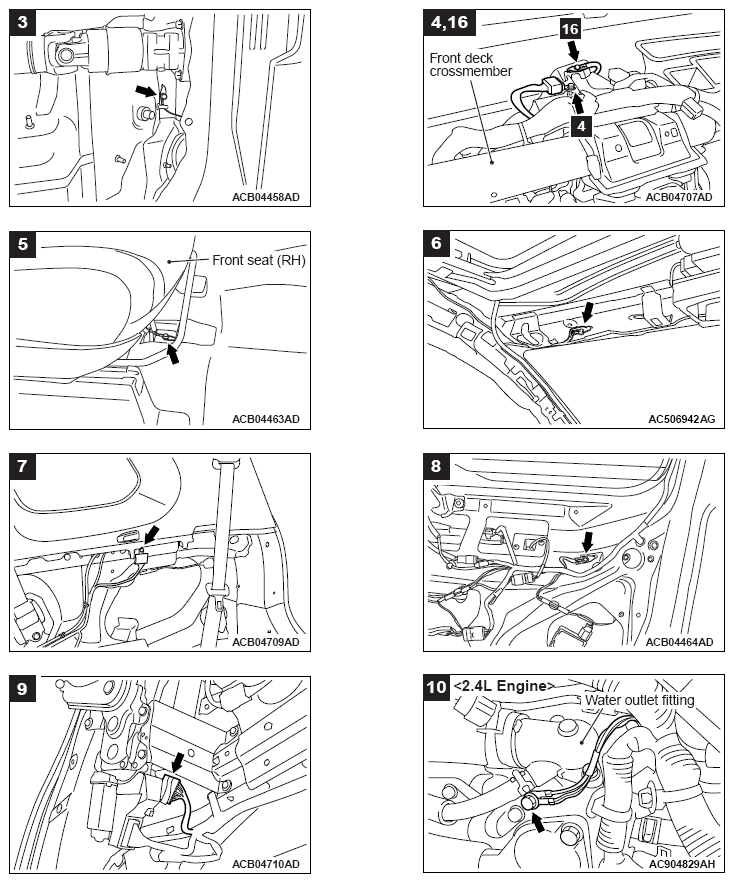

G12371123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

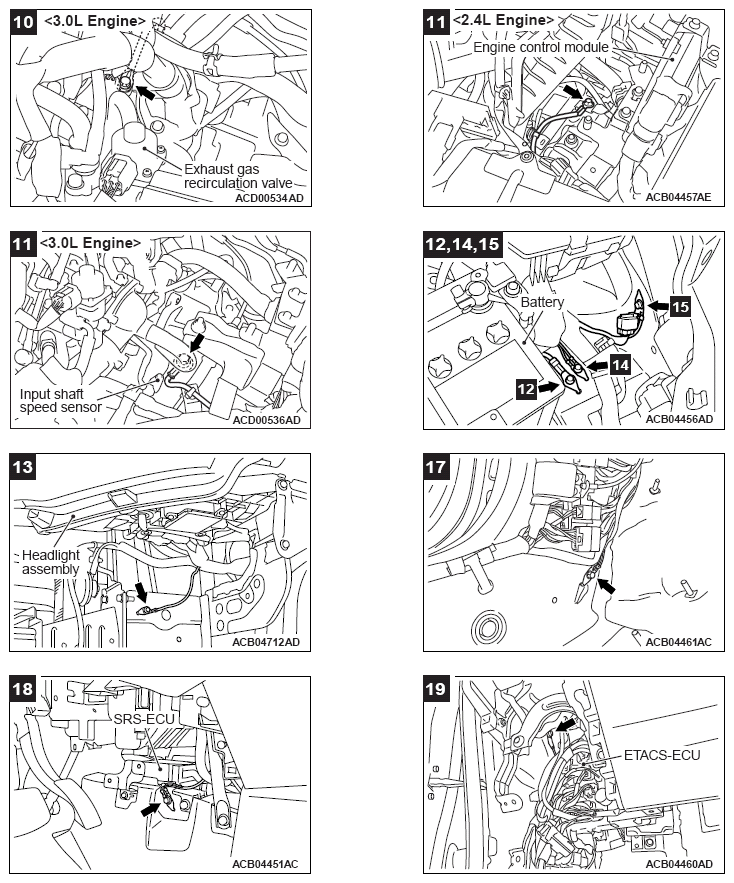

G12371124Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

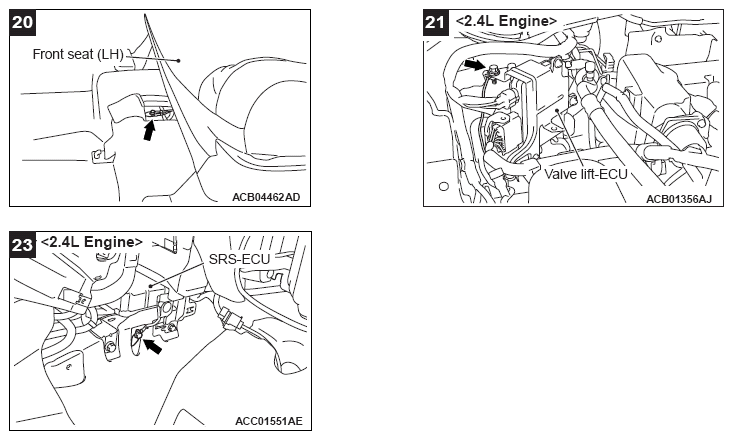

G12371125Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
