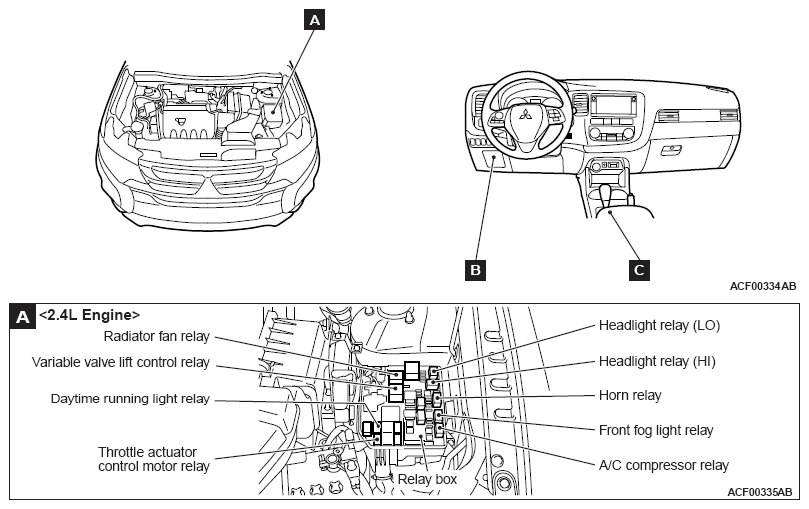

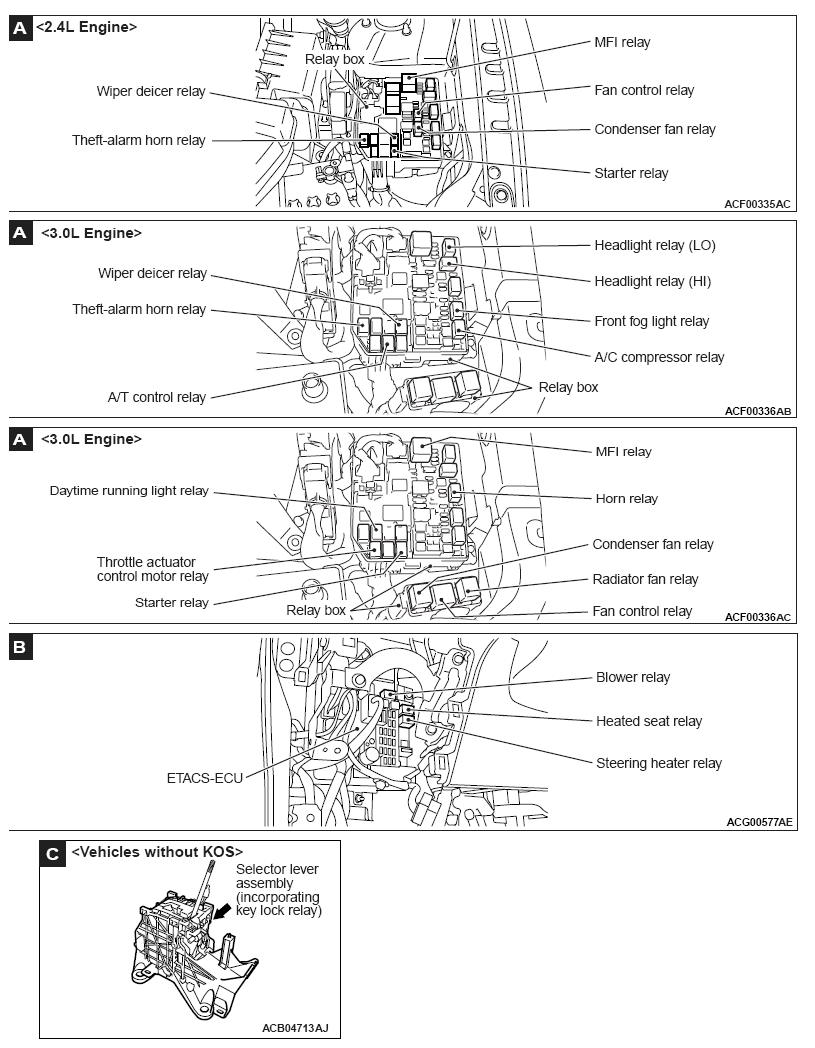

| A/C compressor relay |
A |
| A/T control relay <3.0L Engine> |
A |
| Blower relay |
B |
| Condenser fan relay |
A |
| Daytime running light relay |
A |
| Fan control relay |
A |
| Front fog light relay |
A |
| Headlight relay (HI) |
A |
| Headlight relay (LO) |
A |
| Heated seat relay |
B |
| Horn relay |
A |
| MFI relay |
A |
| Radiator fan relay |
A |
| Selector lever assembly (incorporating key lock relay) <Vehicles without KOS> |
C |
| Starter relay |
A |
| Steering heater relay |
B |
| Theft-alarm horn relay |
A |
| Throttle actuator control motor relay |
A |
| Variable valve lift control relay <2.4L Engine> |
A |
| Wiper deicer relay |
A |
