| A/C pressure sensor |
J |
| Accelerator pedal position sensor |
V |
| Ambient air temperature sensor |
N |
| Battery current sensor <2.4L engine> |
I |
| Brake booster vacuum sensor <2.4L Engine> |
H |
| BSW-ECU (incorporating radar) <Vehicles with blind spot warning (BSW) system (with lane change assist)/rear cross traffic alert (RCTA) system> |
X |
| Camshaft position sensor |
B |
| Column switch (incorporating steering wheel sensor) |
S |
| Crankshaft position sensor |
D |

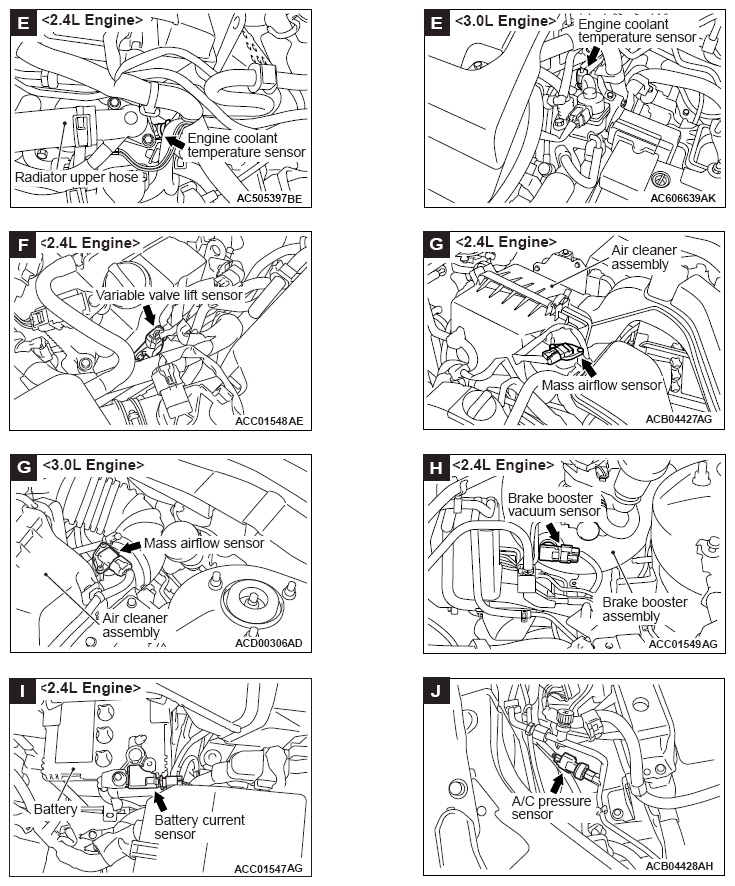

| Engine coolant temperature sensor |
E |
| FCM/LDW/AHB-ECU (incorporating laser radar) |
i |
| Fin thermo sensor |
W |
| Front impact sensor |
O |
| Front light sensor <Vehicles with automatic anti-dazzling mirror> |
i |
| Front wheel speed sensor |
f |
| Fuel level sensor (sub) <AWD> |
c |
| Fuel pump module (incorporating fuel level sensor (main) and fuel tank temperature sensor) |
p |
| Fuel tank differential pressure switch (incorporating fuel tank differential pressure sensor) |
p |
| Heated oxygen sensor (rear) <2.4L Engine> |
n |
| Input shaft speed sensor <3.0L Engine> |
Q |
| Interior temperature sensor |
T |
| Knock sensor <2.4L Engine> |
L |

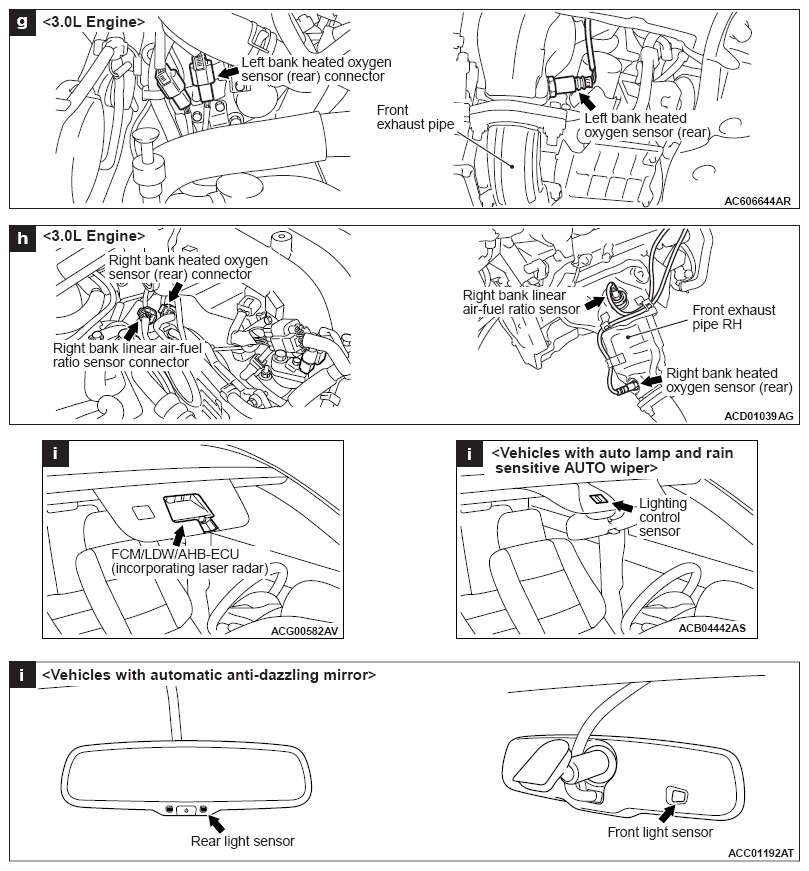

| Left bank heated oxygen sensor (rear) <3.0L Engine> |
g |

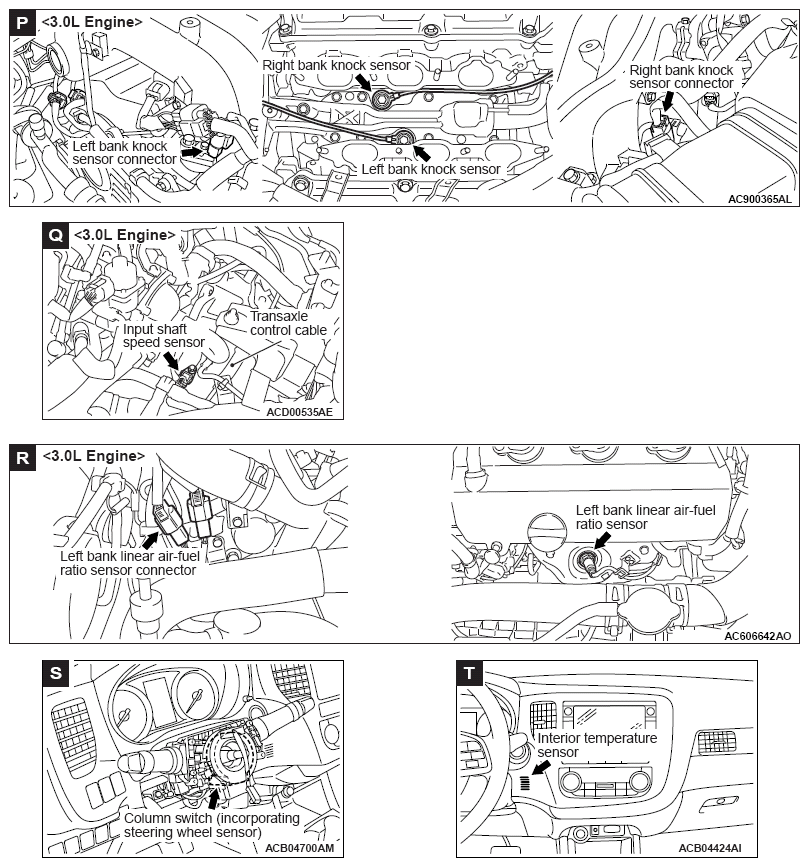

| Left bank knock sensor <3.0L Engine> |
P |
| Left bank linear air-fuel ratio sensor <3.0L Engine> |
R |
| Liftgate sensor <Vehicles with power liftgate> |
Y |
| Lighting control sensor <Vehicles with auto lamp and rain sensitive AUTO wiper> |
i |
| Linear air-fuel ratio sensor <2.4L Engine> |
C |

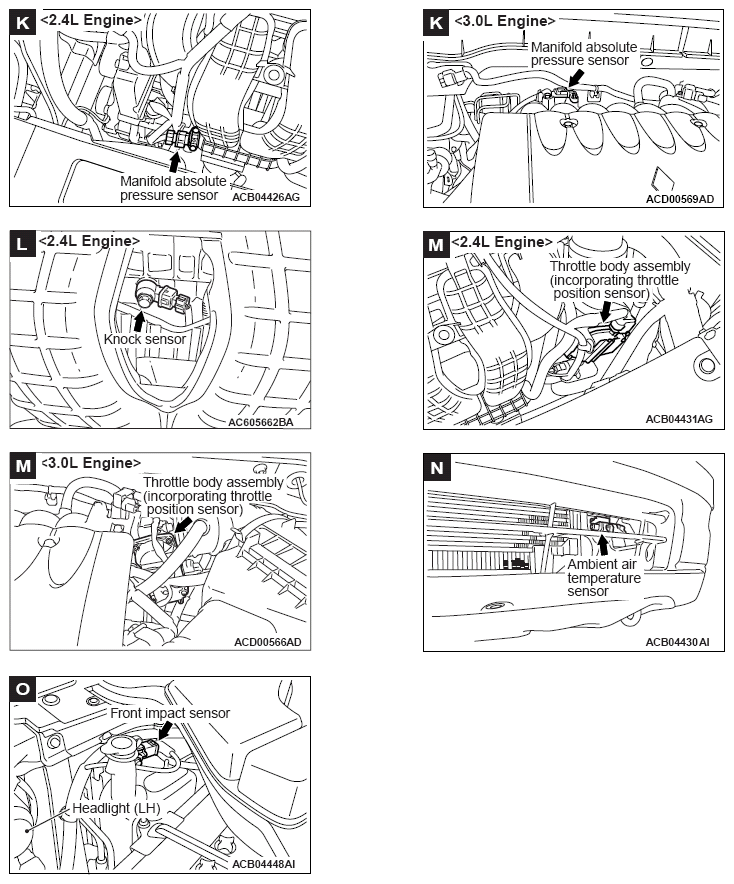

| Manifold absolute pressure sensor |
K |
| Mass airflow sensor |
G |
| Occupant classification sensor |
e |
| Output shaft speed sensor <3.0L Engine> |
m |
| Primary pulley speed sensor <2.4L Engine> |
k |
| Rear light sensor <Vehicles with automatic anti-dazzling mirror> |
i |

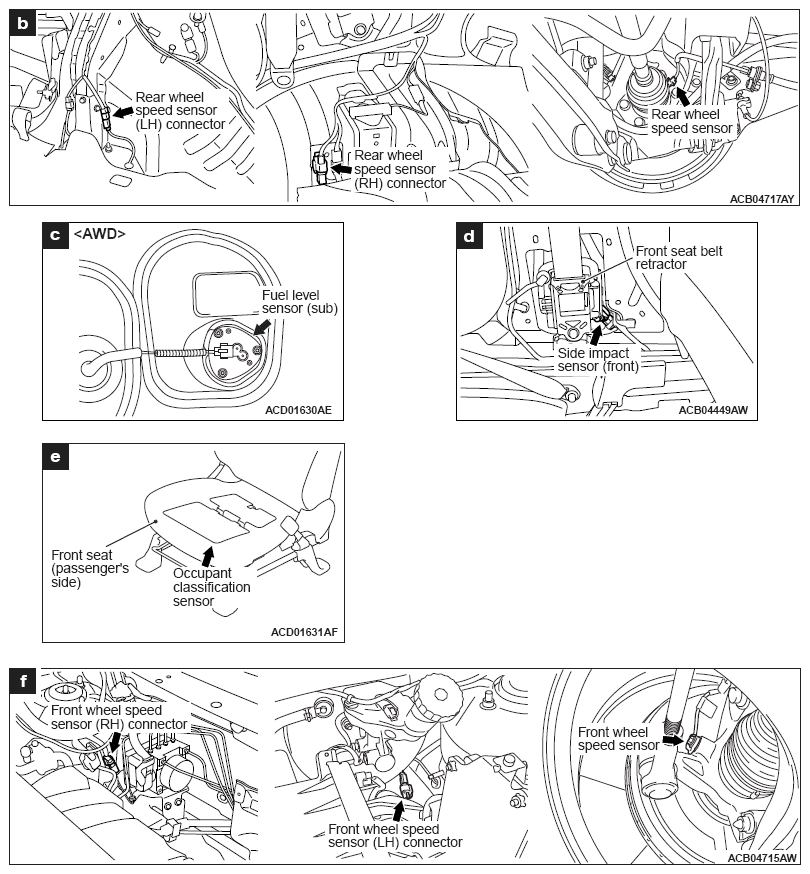

| Rear wheel speed sensor |
b |
| Right bank heated oxygen sensor (rear) <3.0L Engine> |
h |
| Right bank knock sensor <3.0L Engine> |
P |
| Right bank linear air-fuel ratio sensor <3.0L Engine> |
h |
| Seat slide sensor |
o |
| Secondary pulley speed sensor <2.4L Engine> |
m |
| Side impact sensor (front) |
d |
| Side impact sensor (rear) |
a |
| Throttle body assembly (incorporating throttle position sensor) |
M |

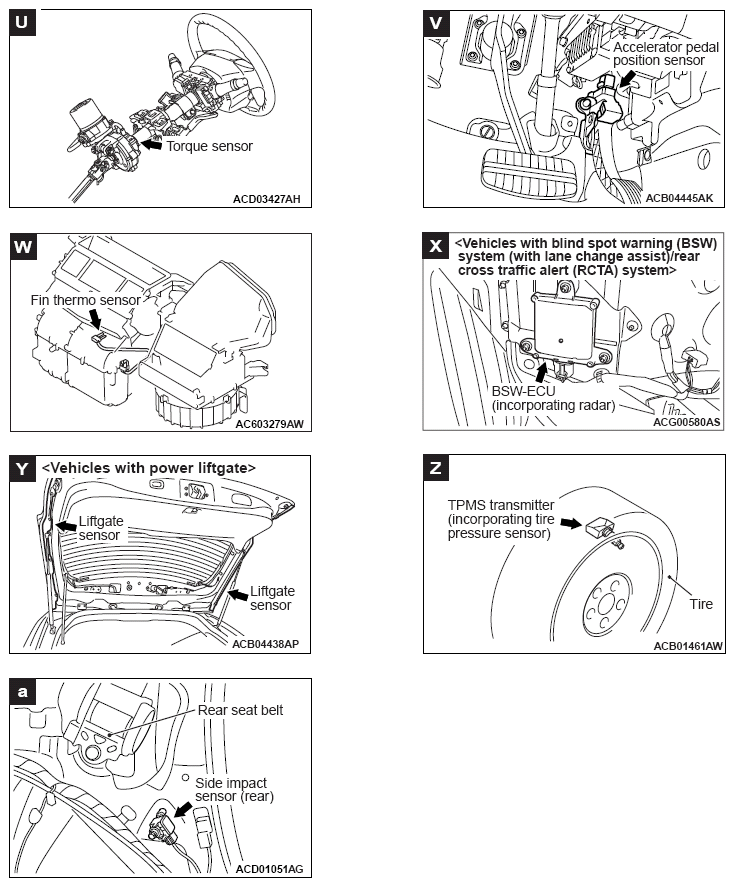

| Torque sensor |
U |
| TPMS transmitter (incorporating tire pressure sensor) |
Z |

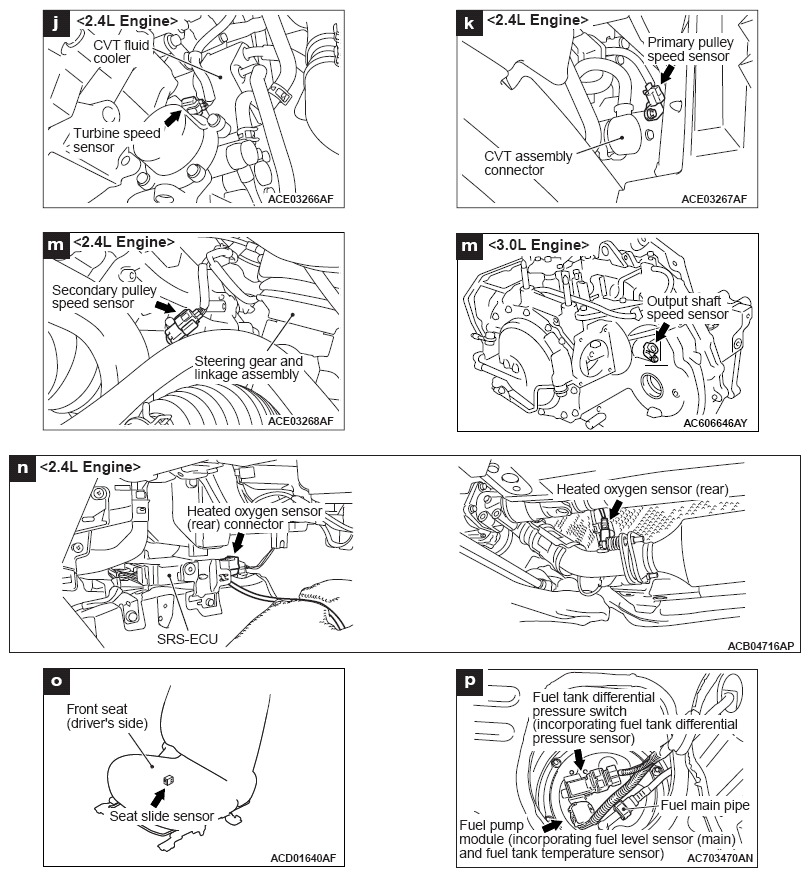

| Turbine speed sensor <2.4L Engine> |
j |

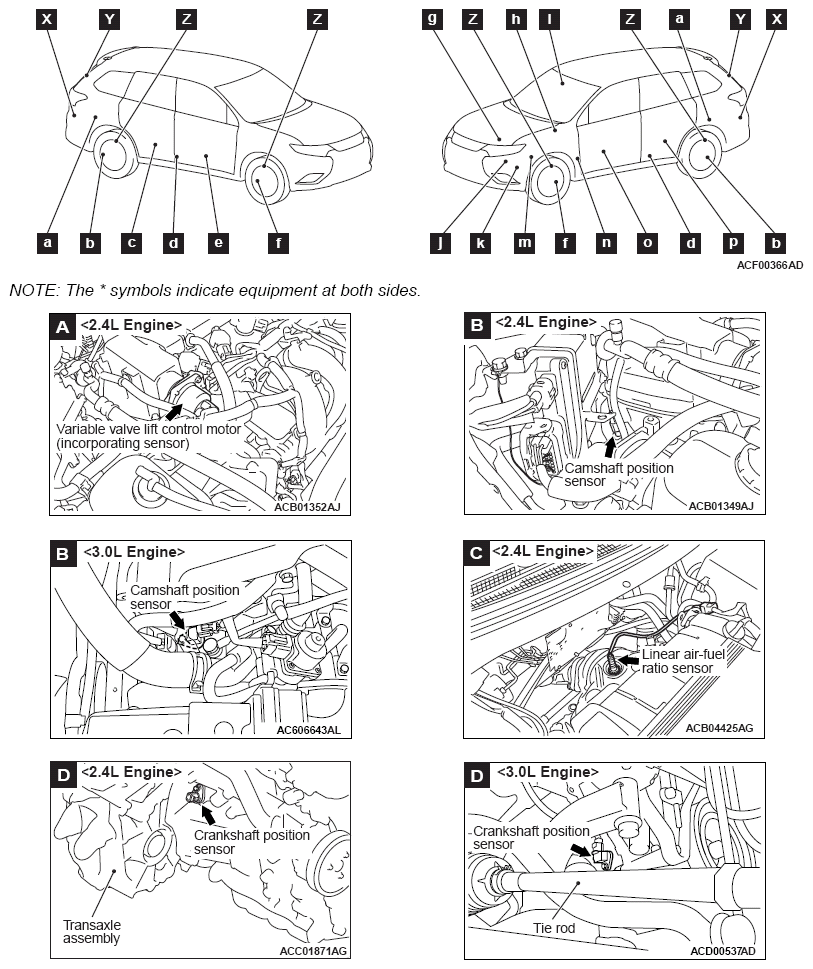

| Variable valve lift control motor (incorporating sensor) <2.4L Engine> |
A |
| Variable valve lift sensor <2.4L Engine> |
F |
