Removal And Installation: Notes

Pre-removal and post-installation operation

• Front deck garnish removal and installation. Refer to WINDSHIELD WIPER .
• Front pillar trim removal and installation. Refer to TRIM .
• Inside rear view mirror removal and installation. Refer to INSIDE REAR VIEW MIRROR )
• Lighting control sensor removal and installation (Vehicles with lighting control sensor). Refer to LIGHTING CONTROL SENSOR REMOVAL AND INSTALLATION (VEHICLES WITH LIGHTING CONTROL SENSOR) .

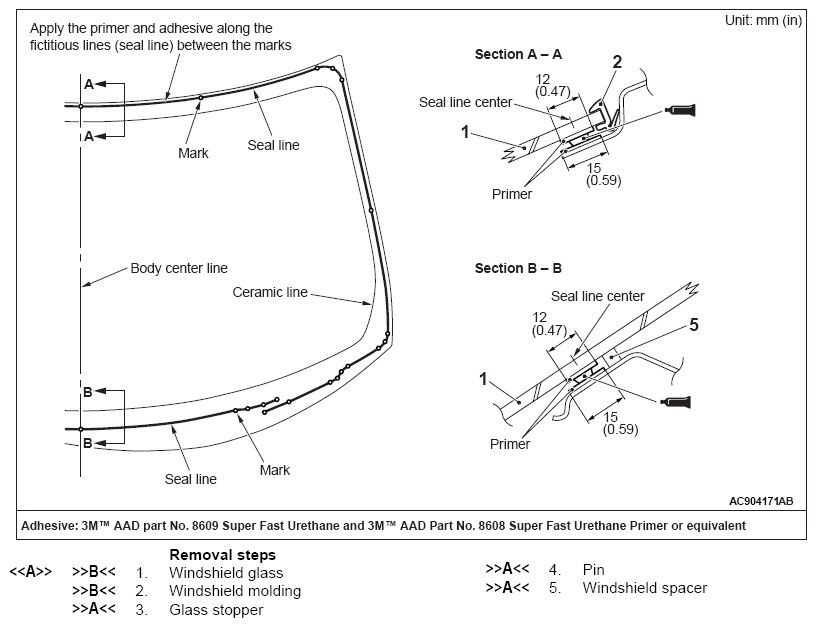

Fig 1: Removing/Installing Windshield Components With Tape Dimensions (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Removing/Installing Windshield Components With Tape Dimensions (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
