Notes
Disassembly And Assembly: Notes

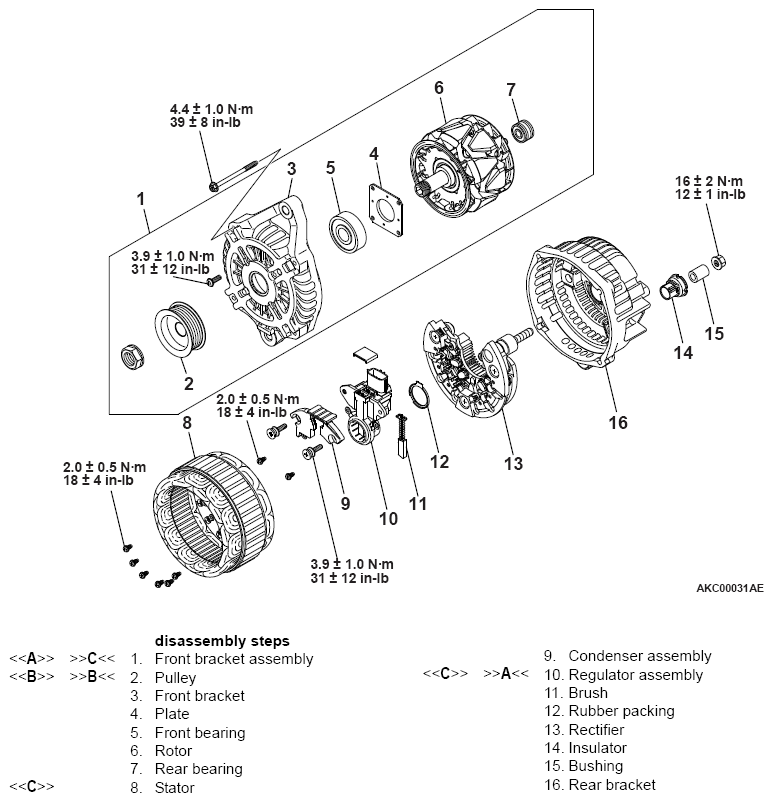

Fig 1: Disassembling And Assembling Generator Assembly Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
