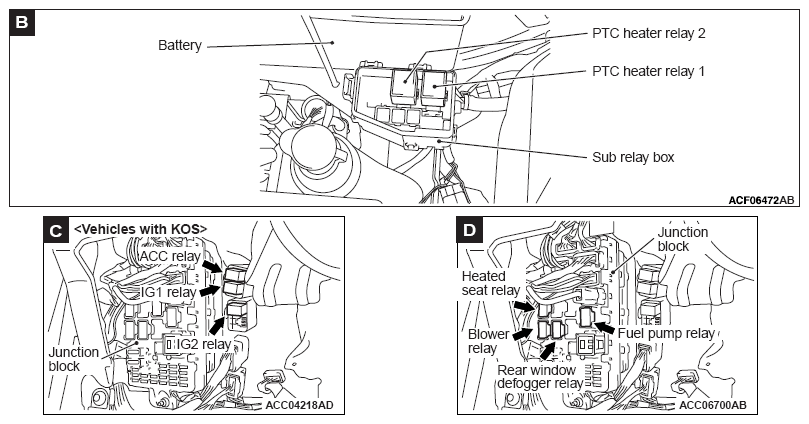

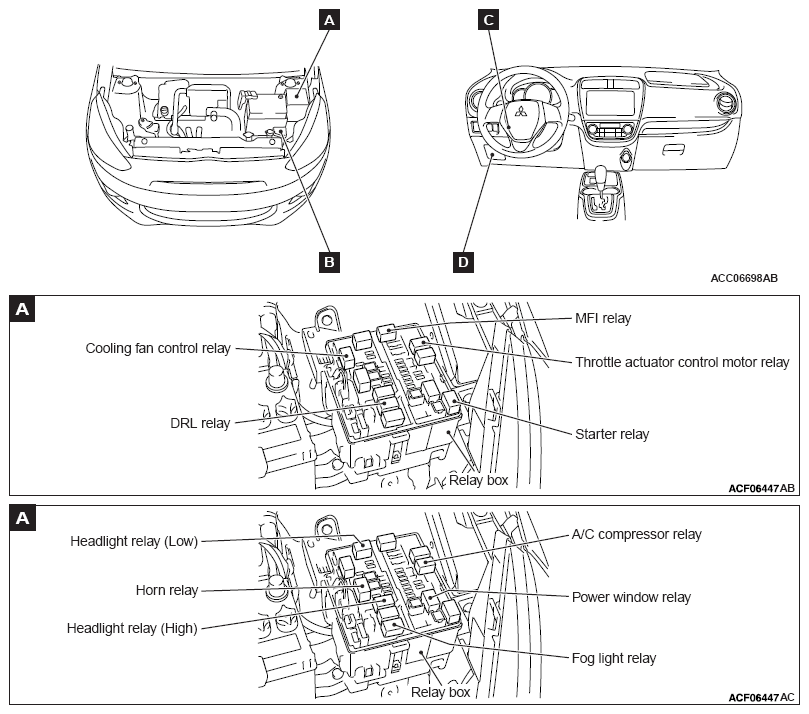

Component Locations: Relay
| Name | Symbol | Name | Symbol |
|---|---|---|---|
| A/C compressor relay | A | Horn relay | A |
| ACC relay <Vehicles with KOS> | C | IG1 relay <Vehicles with KOS> | C |
| Blower relay | D | IG2 relay <Vehicles with KOS> | C |
| Cooling fan control relay | A | MFI relay | A |
| DRL relay | A | Power window relay | A |
| Fog light relay | A | PTC heater relay 1 | B |
| Fuel pump relay | D | PTC heater relay 2 | B |
| Headlight relay (High) | A | Rear window defogger relay | D |
| Headlight relay (Low) | A | Starter relay | A |
| Heated seat relay | D | Throttle actuator control motor relay | A |
