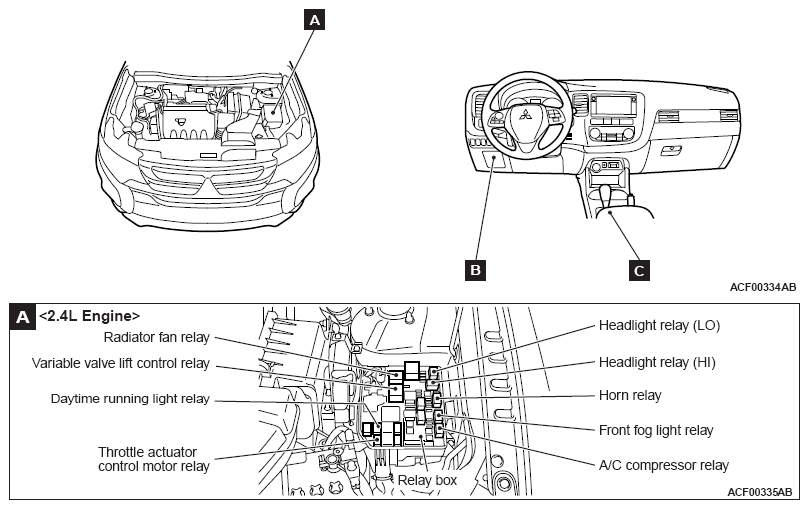

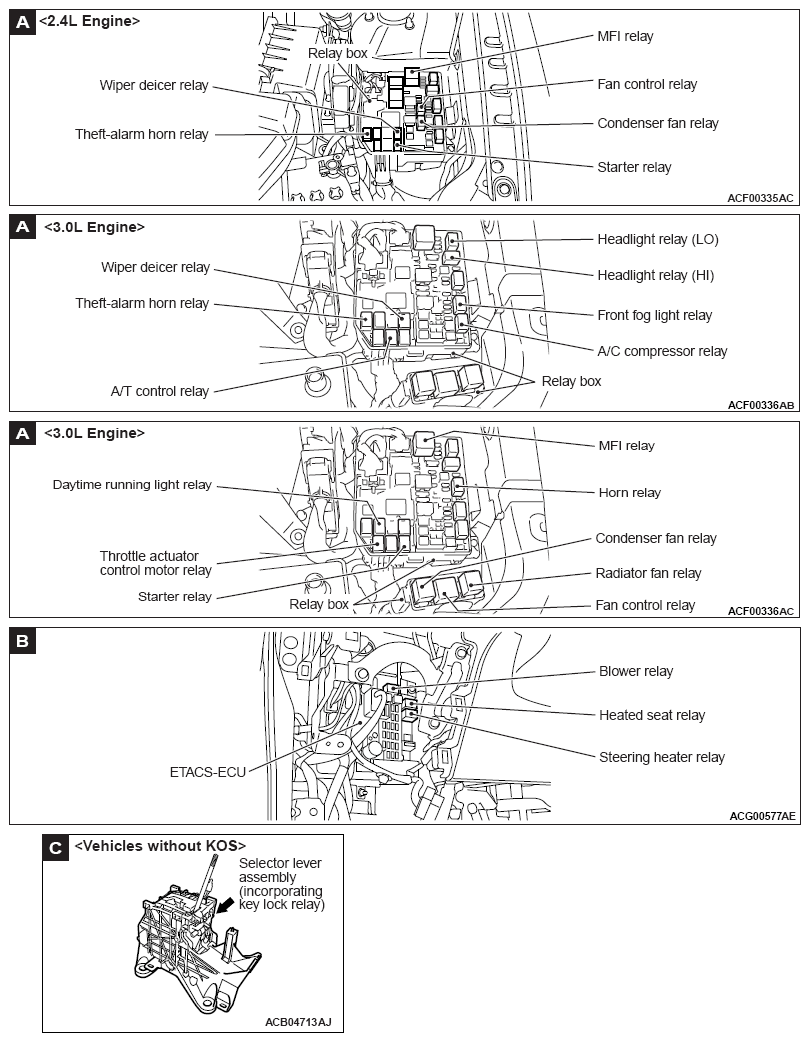

| A/C compressor relay |
A |
Horn relay |
A |
| A/T control relay <3.0L Engine> |
A |
MFI relay |
A |
| Blower relay |
B |
Radiator fan relay |
A |
| Condenser fan relay |
A |
Selector lever assembly (incorporating key lock relay) <Vehicles without KOS> |
C |
| Daytime running light relay |
A |
Starter relay |
A |
| Fan control relay |
A |
Steering heater relay |
B |
| Front fog light relay |
A |
Theft-alarm horn relay |
A |
| Headlight relay (HI) |
A |
Throttle actuator control motor relay |
A |
| Headlight relay (LO) |
A |
Variable valve lift control relay <2.4L Engine> |
A |
| Heated seat relay |
B |
Wiper deicer relay |
A |
