Component Locations: Grounding

G12151548Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground point numbers are used in the circuit diagram.

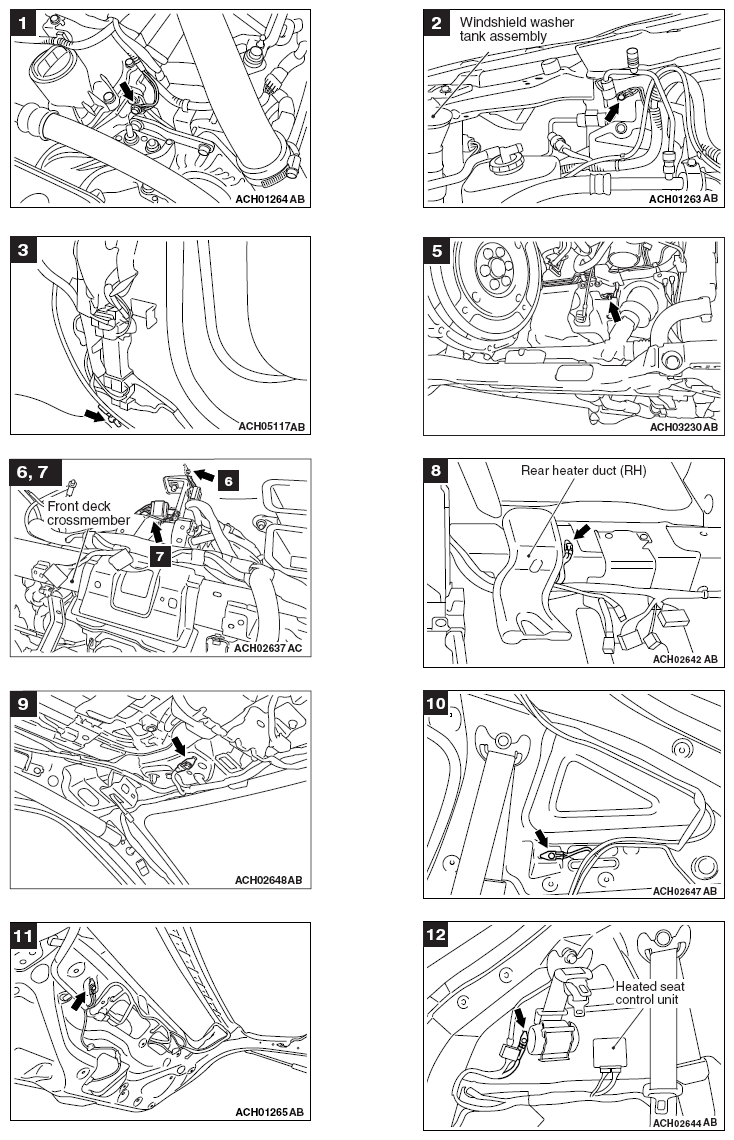

G13325646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

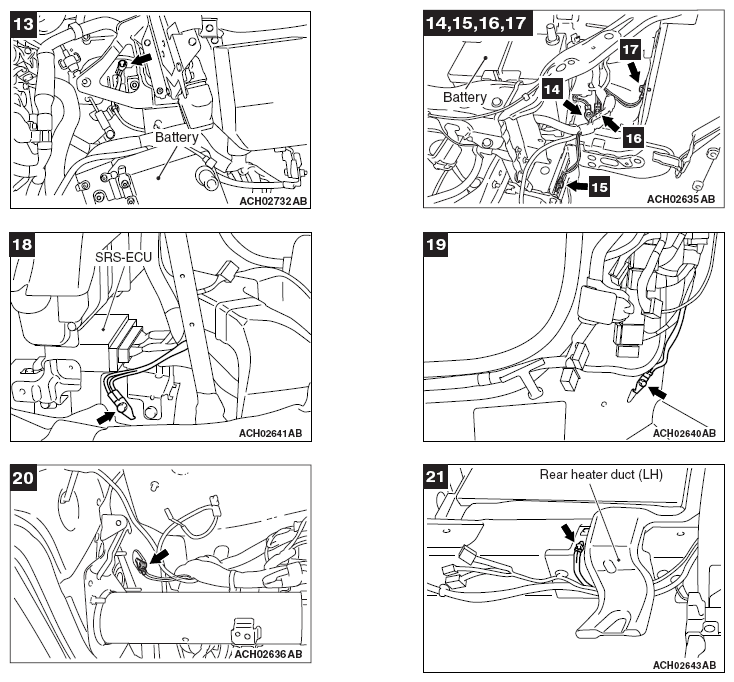

G13325647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
