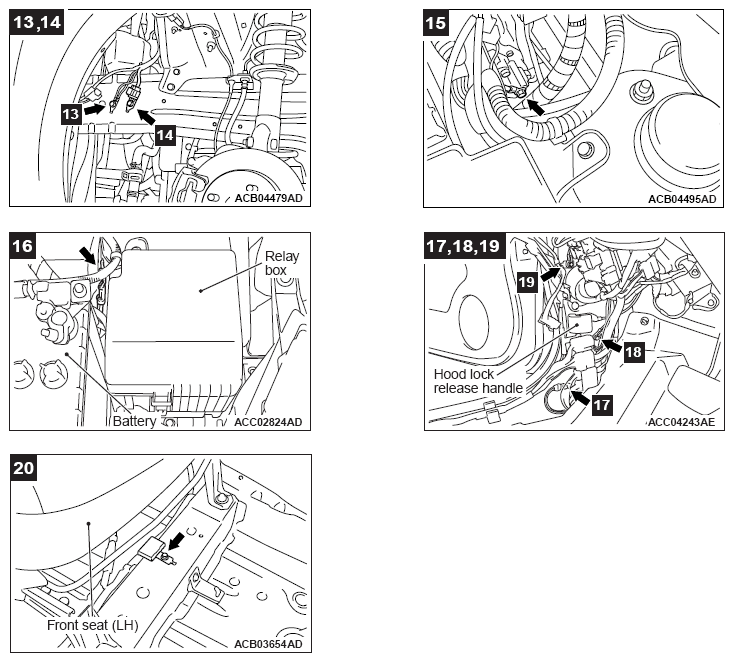

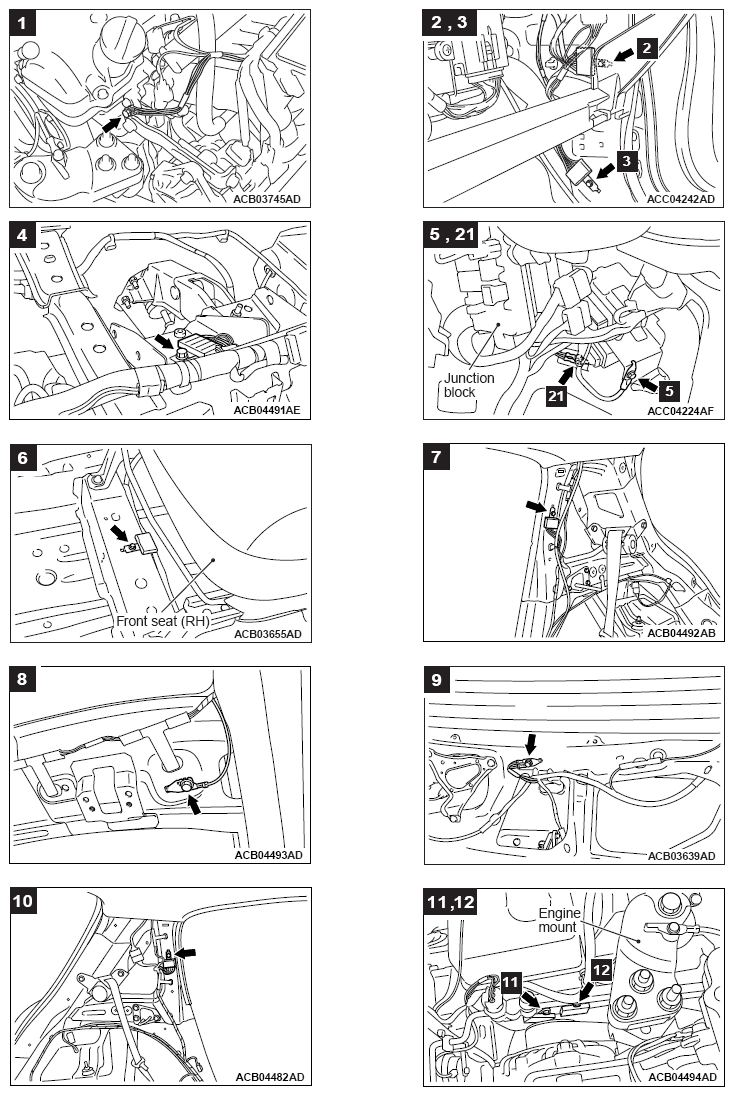

Component Locations: Grounding

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Same ground numbers are used in the circuit diagram.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
