Home >> Mitsubishi >> 2020 >> Mirage LE >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Overhaul >> Timing Chain >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: Never overhaul the V.V.T. sprocket assembly.

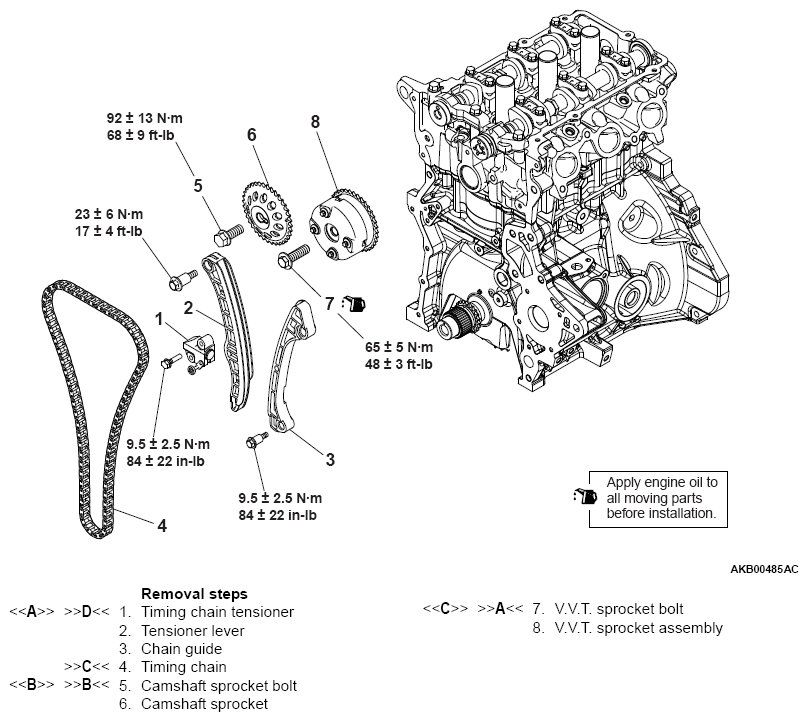

Fig 1: Removing/Installing Timing Chain Components Location With Torque Specification
G13239024Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
