REMOVAL AND INSTALLATION <3.0L Engine>: Notes

Pre-removal Operation  Engine Coolant Draining (Refer to ENGINE COOLANT CHANGE ). Battery and Battery Tray Removal (Refer to BATTERY ).

Post-installation Operation  Battery and Battery Tray Installation (Refer to BATTERY ). Engine Coolant Refilling (Refer to ENGINE COOLANT CHANGE ).

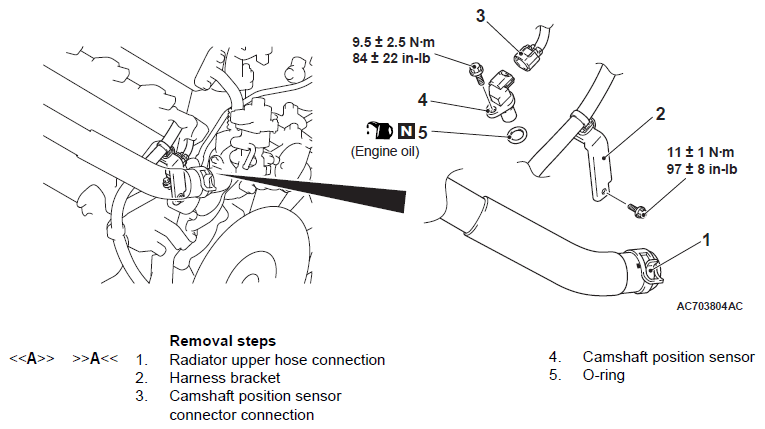

Fig 1: Removing/Installing Camshaft Position Sensor Components Location With Torque Specification (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
