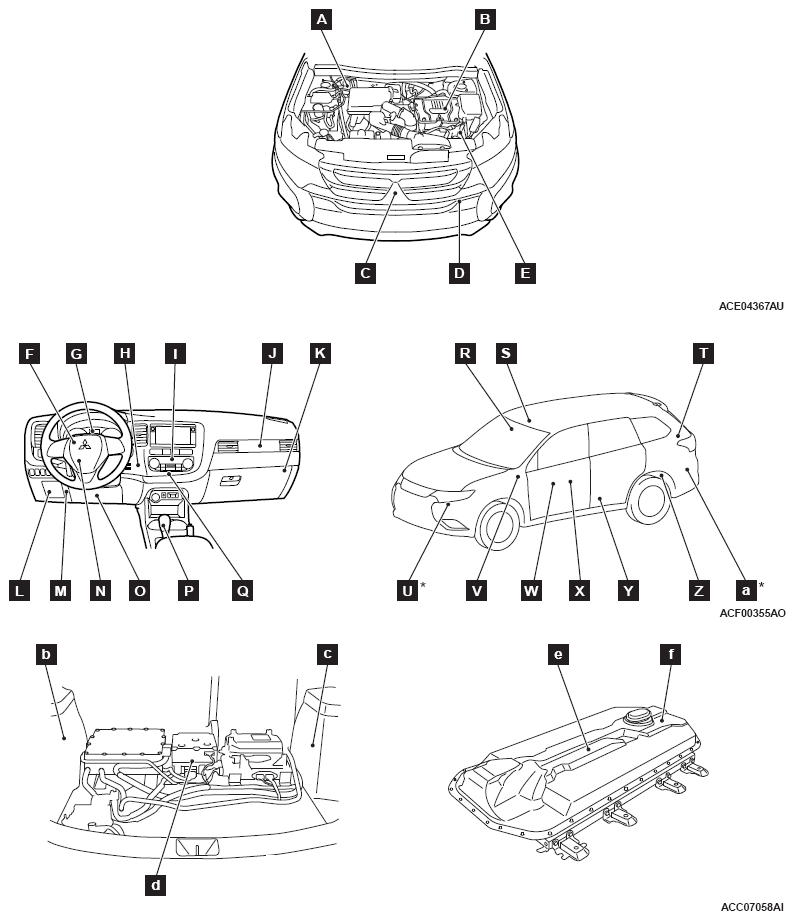

Control Unit

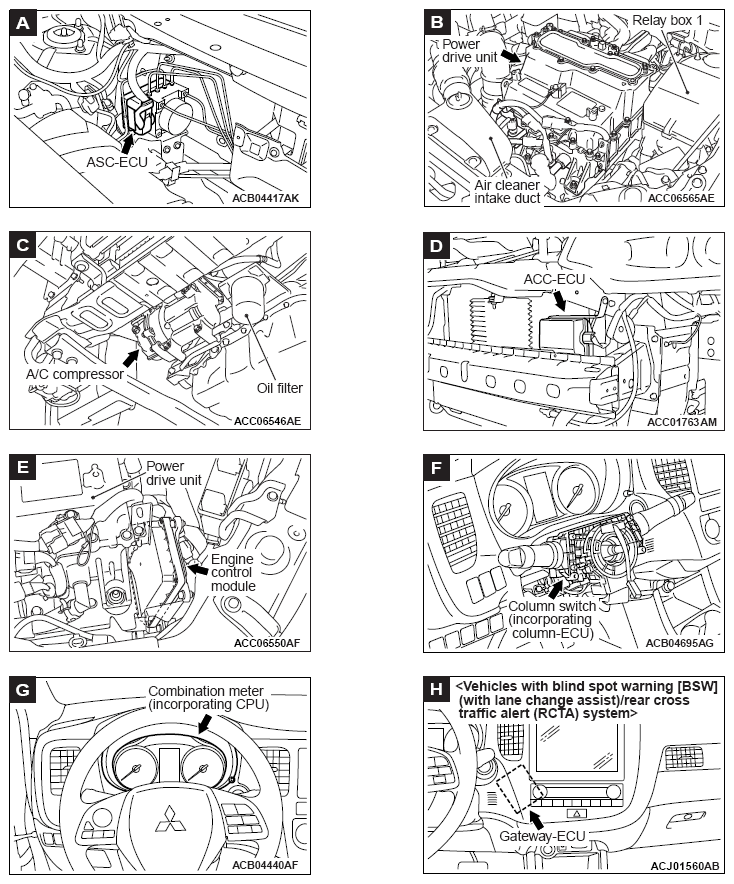

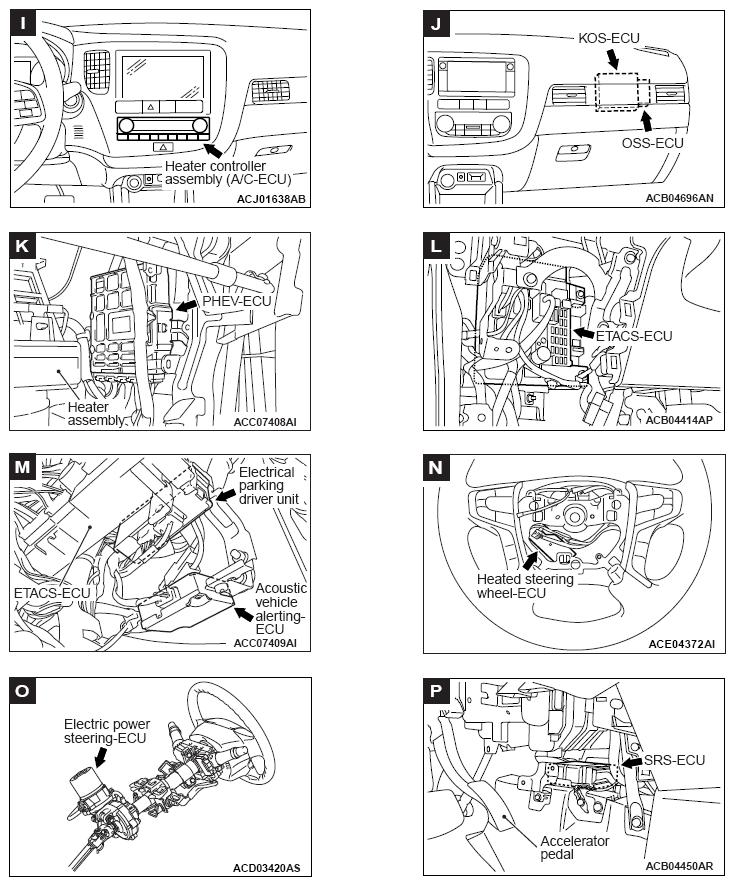

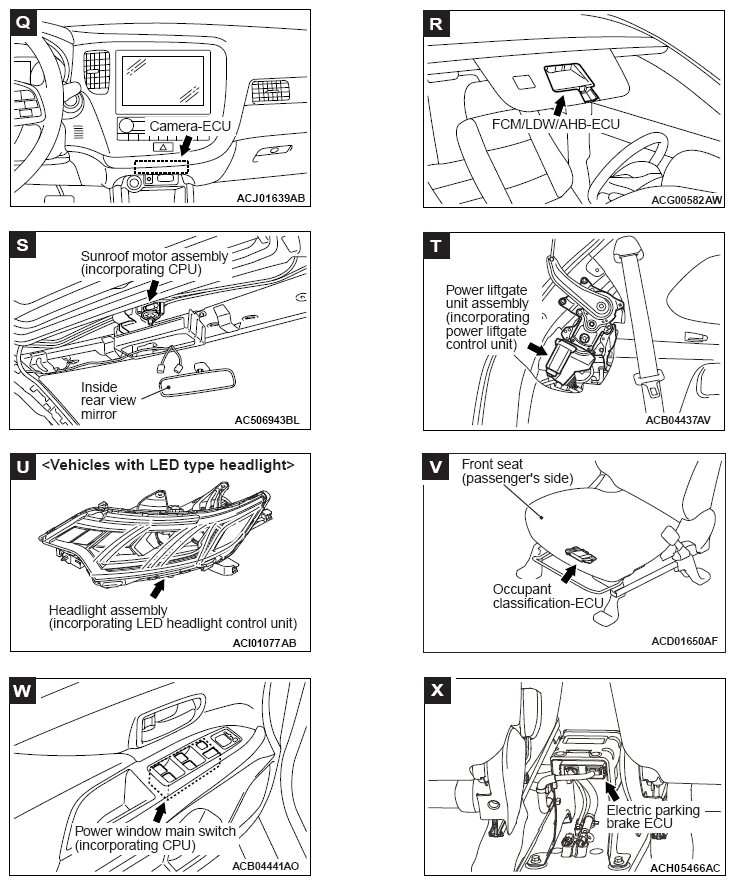

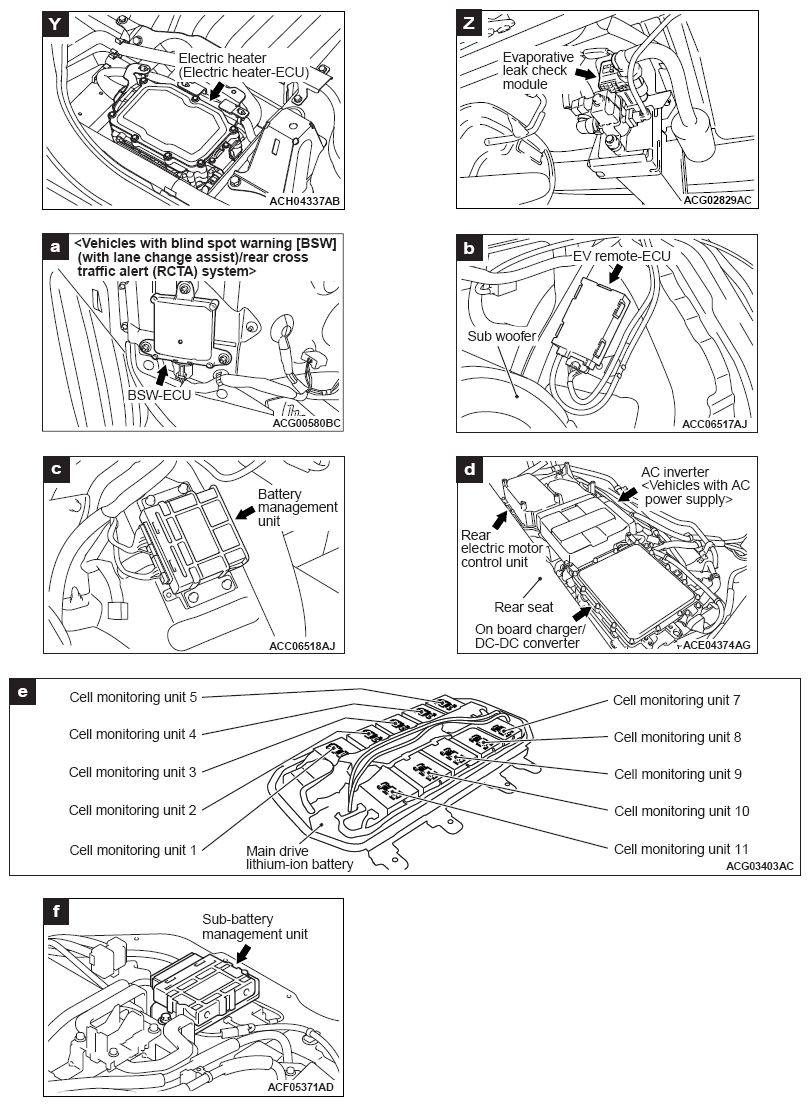

| Name | Symbol | Name | Symbol |
|---|---|---|---|
| ACC-ECU | D | Evaporative leak check module | Z |
| A/C compressor | C | FCM/LDW/AHB-ECU | R |
| AC inverter Vehicles with AC power supply> | d | Gateway-ECU <Vehicles with blind spot warning (BSW) (with lane change assist)/rear cross traffic alert (RCTA) system> | H |
| Acoustic vehicle alerting-ECU | M | Headlight assembly (incorporating LED headlight control unit) Vehicles with LED type headlight> | U |
| ASC-ECU | A | Heated steering wheel-ECU | N |
| Battery management unit | c | Heater controller assembly (A/C-ECU) | I |
| BSW-ECU <Vehicles with blind spot warning (BSW) (with lane change assist)/rear cross traffic alert (RCTA) system> | a | KOS-ECU | J |
| Camera-ECU <Vehicles with multi around monitor> | Q | Occupant classification-ECU | V |
| Cell monitoring unit 1 to 5 and 7 to 11 | e | ON board charger/DC-DC converter | d |
| Column switch (incorporating column-ECU) | F | OSS-ECU | J |
| Combination meter (incorporating CPU) | G | PHEV-ECU | K |
| Electric heater (Electric heater-ECU) | Y | Power drive unit | B |
| Electric parking brake ECU | X | Power liftgate unit assembly (incorporating power liftgate control unit) | T |
| Electric power steering-ECU | O | Power window main switch (incorporating CPU) | W |
| Electrical parking driver unit | M | Rear electric motor control unit | d |
| Engine control module | E | SRS-ECU | P |
| ETACS-ECU | L | Sub-battery management unit | f |
| EV remote-ECU | b | Sunroof motor assembly (incorporating CPU) | S |
NOTE:
The * symbols indicate equipment at both sides.
